Ornit Extra Large Aluminum Alloy Blind Rivet - 4.8mm x 18.0mm

Name: Ornit Extra Large Aluminum Alloy Blind Rivet - 4.8mm x 18.0mm
Brand: Ornit USA
SKU: OPE-4f8ed4
Price: 49.99 USD
Availability: OutOfStock

SKU:OPE-4f8ed4

Premium Ornit Blind Rivet - Precision & Strength Guaranteed

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

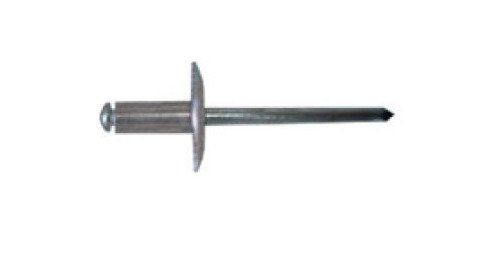

The Ornit Open End X-Large Blind Rivet is a superior fastening solution engineered for precision and durability. With a 4.8mm diameter, 18.0mm body length, and aluminum alloy construction, it delivers exceptional strength and corrosion resistance. Featuring a low carbon steel mandrel and zinc plated chromium finish, this rivet ensures secure attachment for a wide range of applications. Meet your project needs with the Ornit blind rivet's impressive shear force of 150kgf and tensile force of 220kgf, making it a reliable choice for industrial and government procurement requirements.

Product Specifications

Nominal Dimensions Body Length

18.0 mm | 0.709 in

Nominal Dimensions Diameter

4.8 mm

Nominal Dimensions Drillhole Size

4.9 mm | 0.193 in

Nominal Dimensions Head Diameter

15.8 mm | 0.622 in

Nominal Dimensions Head Thickness

1.80 mm | 0.071 in

Nominal Dimensions Mandrel Diameter

2.61 mm | 0.103 in

Nominal Dimensions Maximum Grip Range

13.0 mm | 0.512 in

Nominal Dimensions Minimum Grip Range

11.0 mm | 0.433 in

Nominal Forces Nominal Shear Force

150 kgf | 330 lbf

Nominal Forces Nominal Tensile Force

220 kgf | 484 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (2.5 mg) to AA 5052

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

2000

Technical Specs Head Style

Extra Large

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel SAE 1006-1022

Ornit Extra Large Aluminum Alloy Blind Rivet - 4.8mm x 18.0mm
