Ornit F-Series 11.0mm Open End Cylindrical Head Rivet Nut

Name: Ornit F-Series 11.0mm Open End Cylindrical Head Rivet Nut
Brand: Ornit USA
SKU: FSE-4d8ce7
Price: 24.99 USD
Availability: OutOfStock

SKU:FSE-4d8ce7

High-strength Ornit F-Series 11.0mm Open End Cylindrical Head Rivet Nut for secure industrial fastening.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

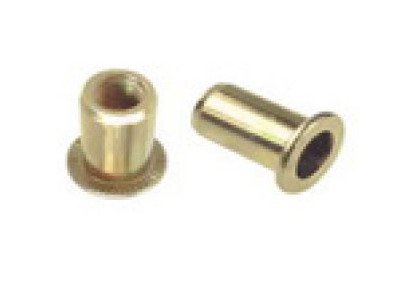

The Ornit F-Series 11.0mm Open End Cylindrical Head Rivet Nut is a high-quality fastening solution designed for industrial applications. Constructed from durable steel with a yellow zinc plated finish, this rivet nut offers exceptional strength and corrosion resistance. With a grip range of 1.0mm to 2.5mm and precise dimensions, it ensures a secure and reliable attachment. Additionally, options in stainless steel and aluminum are available to meet specific requirements. Perfect for structural and fabrication projects, this rivet nut delivers superior performance and durability.

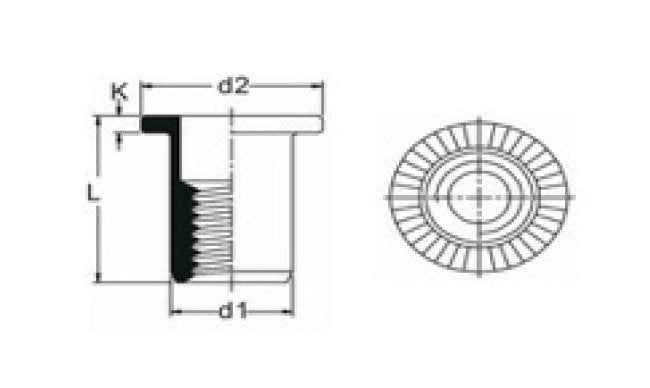

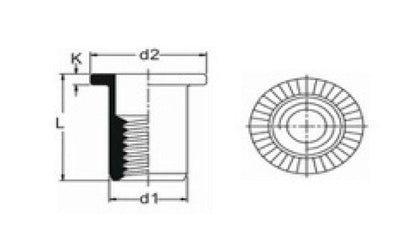

Product Specifications

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

9.0 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

11.0 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Square style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit F-Series 11.0mm Open End Cylindrical Head Rivet Nut
