Ornit F-Series 16.0mm Small Head Rivet Nut

Name: Ornit F-Series 16.0mm Small Head Rivet Nut
Brand: Ornit USA
SKU: FSE-3b8d84
Price: 14.99 USD
Availability: OutOfStock

SKU:FSE-3b8d84

High-quality Ornit F-Series 16.0mm Small Head Rivet Nut for secure fastening in industrial applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

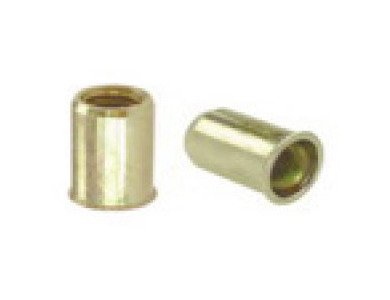

The Ornit F-Series 16.0mm Small Head Rivet Nut is a high-quality fastening solution designed for industrial applications. Made of durable steel with a yellow zinc plated finish, this rivet nut features a Reduced Countersunk Head (Small) for a flush and secure fit. With a Thread Size of M8 and a grip range between 1.0mm to 3.0mm, it offers reliable and sturdy anchoring. The open-end design allows for easy installation and the option for serration style and materials like Stainless Steel & Aluminum make it versatile for various projects.

Product Specifications

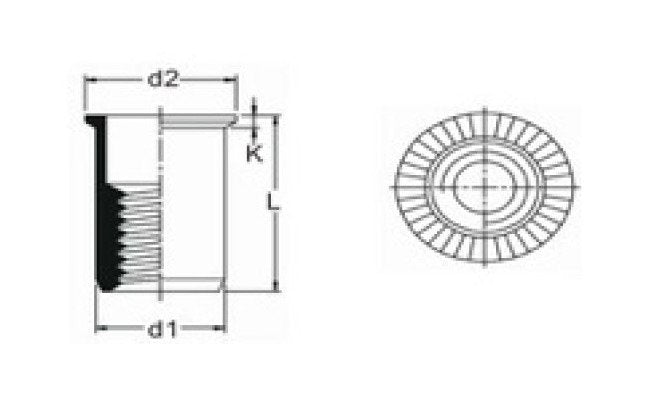

Dimensions Dimension D1

10.5 mm

Dimensions Dimension D2

11.7 mm

Dimensions Dimension K

0.9 mm

Dimensions Dimension L

16.0 mm

Dimensions Hole Size

10.6 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit F-Series 16.0mm Small Head Rivet Nut
