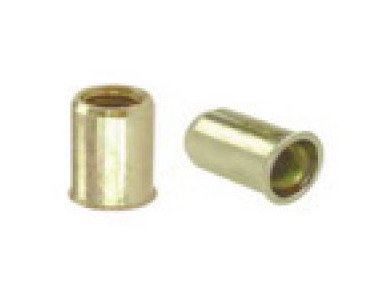

Ornit F-Series 9.0mm Small Rivet Nut

Name: Ornit F-Series 9.0mm Small Rivet Nut
Brand: Ornit USA
SKU: FSE-61bb2a
Price: 24.99 USD
Availability: OutOfStock

SKU:FSE-61bb2a

Ornit F-Series 9.0mm Small Rivet Nut - Durable steel rivet nut with Reduced Countersunk Head, ideal for industrial applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit F-Series 9.0mm Small Rivet Nut is a high-quality fastening solution designed for industrial applications. Made of durable steel with a yellow zinc plated finish, this rivet nut features a Reduced Countersunk Head for a flush and smooth finish. With a grip range of 0.5mm to 1.5mm and precise dimensions, it offers secure and reliable fastening. This versatile rivet nut is also available in stainless steel and aluminum options, catering to a wide range of project needs. Serration style is available for enhanced grip strength.

Product Specifications

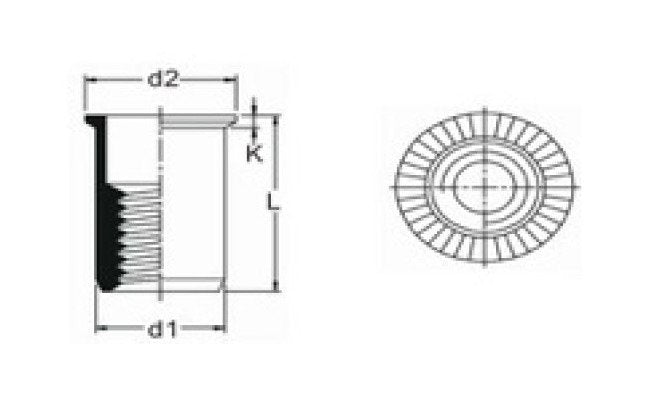

Dimensions Dimension D1

4.8 mm

Dimensions Dimension D2

5.5 mm

Dimensions Dimension K

0.6 mm

Dimensions Dimension L

9.0 mm

Dimensions Hole Size

4.9 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit F-Series 9.0mm Small Rivet Nut
