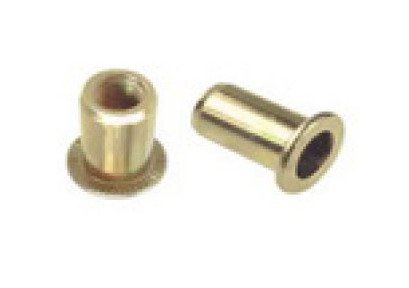

Ornit F-Series 9.5mm L Open End Rivet Nut

Name: Ornit F-Series 9.5mm L Open End Rivet Nut
Brand: Ornit USA
SKU: FSE-d467ba
Price: 29.99 USD
Availability: OutOfStock

SKU:FSE-d467ba

High-quality Ornit F-Series 9.5mm L Open End Rivet Nut for secure and durable fastening solutions.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit F-Series 9.5mm L Open End Cylindrical Head Rivet Nut is a durable and reliable fastening solution designed for various applications. Constructed from high-quality steel with a yellow zinc plated finish, it offers excellent corrosion resistance. With a grip range of 1.0mm to 2.5mm and precise dimensions, including 4.9mm d1, 8.0mm d2, and 0.8mm k, this rivet nut ensures a secure and tight fit. Ideal for industrial and construction use, it also comes in stainless steel and aluminum options, meeting diverse needs with its exceptional performance.

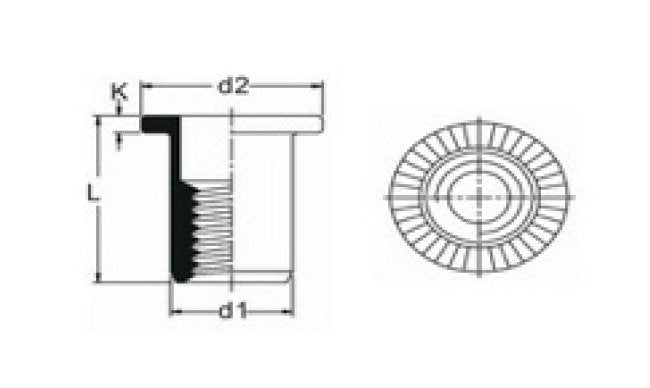

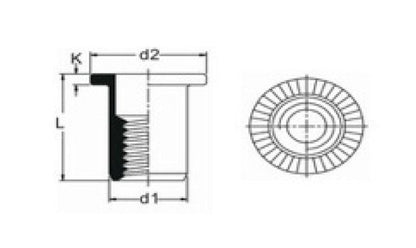

Product Specifications

Dimensions Dimension D1

4.9 mm

Dimensions Dimension D2

8.0 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

9.5 mm

Dimensions Hole Size

5.0 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Square style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit F-Series 9.5mm L Open End Rivet Nut
