Ornit F-Series Cylindrical Head Rivet Nut, 22.0mm L

Name: Ornit F-Series Cylindrical Head Rivet Nut, 22.0mm L
Brand: Ornit USA
SKU: FSE-28e7ae
Price: 15.99 USD
Availability: OutOfStock

SKU:FSE-28e7ae

Durable Ornit F-Series Cylindrical Head Rivet Nut for secure and flush fastening in industrial applications.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

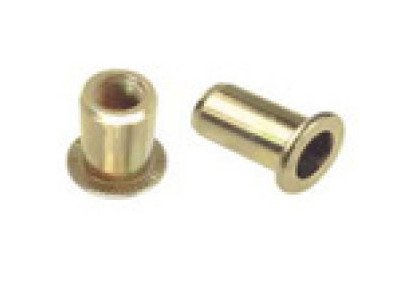

The Ornit F-Series 22.0mm Dimension L Open End Cylindrical Head Rivet Nut is a high-quality fastening solution designed for industrial applications. Made of steel with a yellow zinc plated finish, this rivet nut offers exceptional durability and corrosion resistance. With a minimum grip range of 3.5mm and a maximum grip range of 6.0mm, it provides a secure and reliable fastening option. The cylindrical head (flat) design ensures a flush fit, making it ideal for a wide range of assembly projects. Available in stainless steel and aluminum options, with the ability to meet various procurement standards, the Ornit F-Series Rivet Nut is a versatile choice for both consumer and institutional buyers.

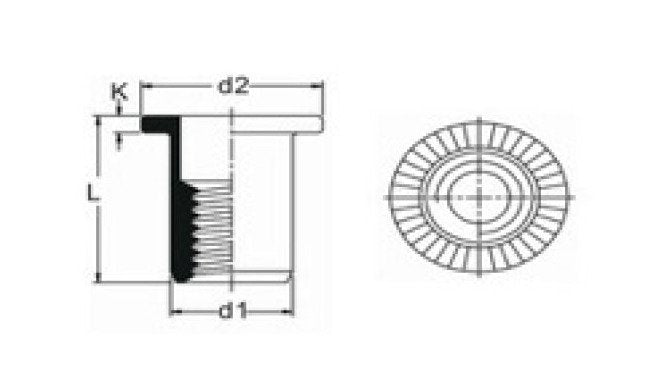

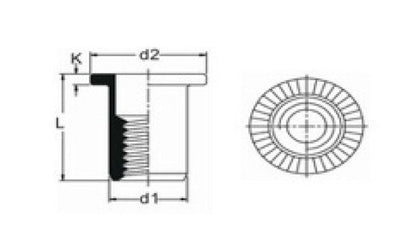

Product Specifications

Dimensions Dimension D1

11.9 mm

Dimensions Dimension D2

16.0 mm

Dimensions Dimension K

1.7 mm

Dimensions Dimension L

22.0 mm

Dimensions Hole Size

12.0 mm

Dimensions Maximum Grip Range

6.0 mm

Dimensions Minimum Grip Range

3.5 mm

Note Note

Stainless Steel & Aluminum are available. Square style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

Ornit F-Series Cylindrical Head Rivet Nut, 22.0mm L
