Ornit K-Series 0.680" Open End Countersunk Head Rivet Nut
Ornit K-Series 0.680" Open End Countersunk Head Rivet Nut
SKU:KSE-7e097e
Ornit K-Series 0.680" Rivet Nut - Premium steel rivet nut with serration style 2 & yellow zinc finish for secure fastening in 1/4-20 threaded holes.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Ornit K-Series 0.680" Open End Countersunk Head Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
Ornit K-Series 0.680" Open End Countersunk Head Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

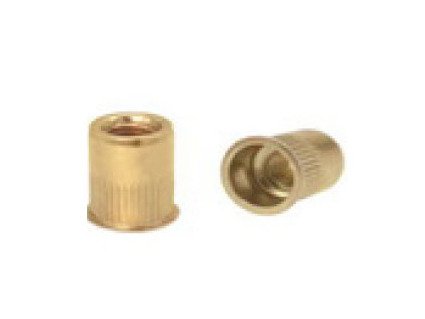

The Ornit K-Series 0.680 Inch (in) Dimension L and 1/4 in. - 20 Thread Size Open End Countersunk Head (AK) Rivet Nut is a high-quality fastening solution made of durable steel with a yellow zinc plated finish. It features a serration style 2, providing enhanced grip and stability. With a dimension L of 0.680 inches and a thread size of 1/4-20, this rivet nut offers a minimum grip range of 0.165 inches and a maximum grip range of 0.260 inches. Suitable for various applications, including industrial and construction projects, this rivet nut ensures secure and long-lasting connections.
Product Specifications

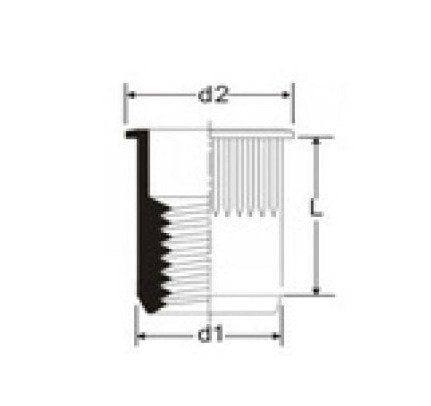

Dimensions Dimension D1
0.390 in
Dimensions Dimension D2
0.455 in
Dimensions Dimension K
0.022 in
Dimensions Dimension L
0.680 in
Dimensions Hole Size
25/64 in
Dimensions Maximum Grip Range
0.260 in
Dimensions Minimum Grip Range
0.165 in
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Countersunk Head (AK)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Style
Serration Style 2
Technical Specs Thread Size
1/4-20
