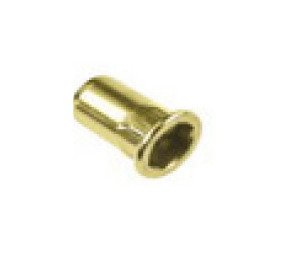

Ornit K-Series #10-24 Open End Semi-Hexagon Flat Head Imperial Rivet Nut

Name: Ornit K-Series #10-24 Open End Semi-Hexagon Flat Head Imperial Rivet Nut
Brand: Ornit USA
SKU: KSE-f94215
Price: 24.99 USD
Availability: OutOfStock

SKU:KSE-f94215

Ornit K-Series Rivet Nut: Durable steel, yellow zinc plated finish, 0.435" length, #10-24 thread, secure grip range 0.020-0.130"

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit K-Series Open End Semi-Hexagon Flat Head (AH) Imperial Rivet Nut is a high-quality fastening solution suitable for various applications. Crafted from durable steel with a yellow zinc plated finish, it offers corrosion resistance and reliability. With precise dimensions including a 0.435-inch length and #10-24 thread size, this rivet nut ensures a secure grip range from 0.020 to 0.130 inches. Ideal for industrial and institutional use, the Ornit rivet nut also offers options in stainless steel and aluminum. Invest in this trusted rivet nut for superior performance and longevity.

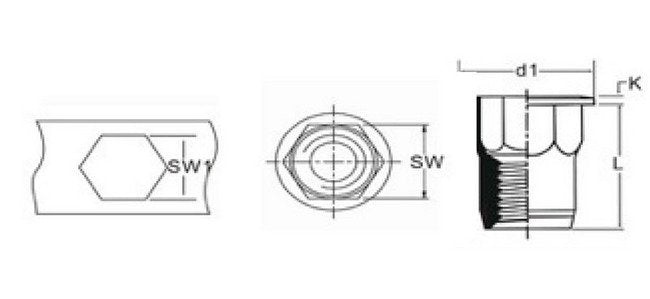

Product Specifications

Dimensions Dimension D1

0.390 in

Dimensions Dimension K

0.027 in

Dimensions Dimension L

0.435 in

Dimensions Dimension Sw

0.280 in

Dimensions Dimension Sw1

0.281 in

Dimensions Maximum Grip Range

0.130 in

Dimensions Minimum Grip Range

0.020 in

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

#10-24
