Ornit K-Series #10-32 Open End Cylindrical Rivet Nut - 0.475in L

Name: Ornit K-Series #10-32 Open End Cylindrical Rivet Nut - 0.475in L
Brand: Ornit USA
SKU: KSE-236f7b
Price: 12.99 USD
Availability: OutOfStock

SKU:KSE-236f7b

Ornit K-Series #10-32 Open End Cylindrical Rivet Nut for durable, corrosion-resistant fastening in industrial applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

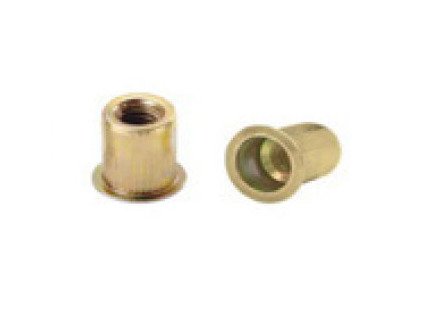

The Ornit K-Series Open End Cylindrical Head Rivet Nut offers exceptional durability and secure fastening for a wide range of applications. Constructed from steel with a yellow zinc finish, it ensures long-lasting corrosion resistance. With precise dimensions including a 0.475-inch L and a #10-32 thread size, this rivet nut provides a strong grip range from 0.020 to 0.130 inches. Serration Style 1 adds extra grip and stability. Ideal for industrial use, this rivet nut is available in stainless steel and aluminum variants, meeting diverse procurement standards.

Product Specifications

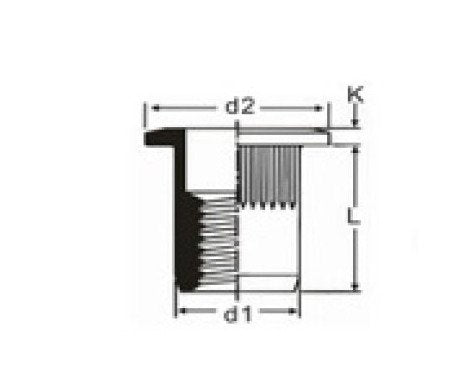

Dimensions Dimension D1

0.296 in

Dimensions Dimension D2

0.415 in

Dimensions Dimension K

0.030 in

Dimensions Dimension L

0.475 in

Dimensions Hole Size

19/64 in

Dimensions Maximum Grip Range

0.130 in

Dimensions Minimum Grip Range

0.020 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Style

Serration Style 1

Technical Specs Thread Size

#10-32
