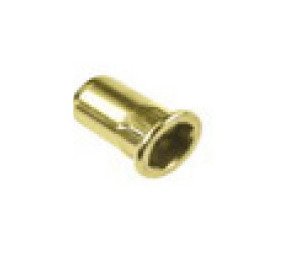

Ornit K-Series Imperial Rivet Nut #10-32 Thread Semi-Hex Flat Head, 0.435in L

Name: Ornit K-Series Imperial Rivet Nut #10-32 Thread Semi-Hex Flat Head, 0.435in L
Brand: Ornit USA
SKU: KSE-1e7e6f
Price: 14.99 USD
Availability: OutOfStock

SKU:KSE-1e7e6f

Durable Ornit K-Series Imperial Rivet Nut with #10-32 Thread & 0.435in Length, ideal for various applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit K-Series Imperial Rivet Nut features a durable steel construction with yellow zinc plating, catering to varied industrial needs. With #10-32 thread size and a semi-hexagon flat head design, it offers a secure grip range of 0.020in to 0.130in. This rivet nut is also available in Stainless Steel & Aluminum, ensuring versatility and compliance with industry standards.

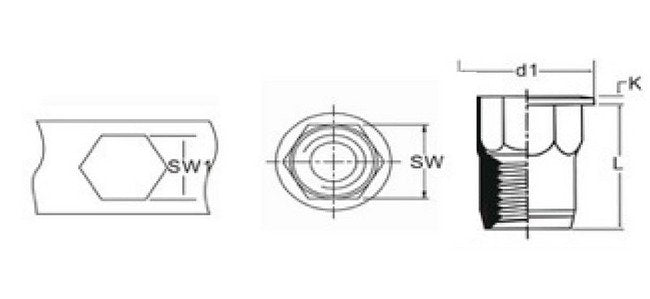

Product Specifications

Dimensions Dimension D1

0.390 in

Dimensions Dimension K

0.027 in

Dimensions Dimension L

0.435 in

Dimensions Dimension Sw

0.280 in

Dimensions Dimension Sw1

0.281 in

Dimensions Maximum Grip Range

0.130 in

Dimensions Minimum Grip Range

0.020 in

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

#10-32

Ornit K-Series Imperial Rivet Nut #10-32 Thread Semi-Hex Flat Head, 0.435in L
