Ornit K-Series M10 Open End Semi-Hexagon Rivet Nut

Name: Ornit K-Series M10 Open End Semi-Hexagon Rivet Nut
Brand: Ornit USA
SKU: KSE-a922d0
Price: 12.99 USD
Availability: OutOfStock

SKU:KSE-a922d0

Ornit K-Series M10 Rivet Nut for secure and reliable fastening in industrial settings.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

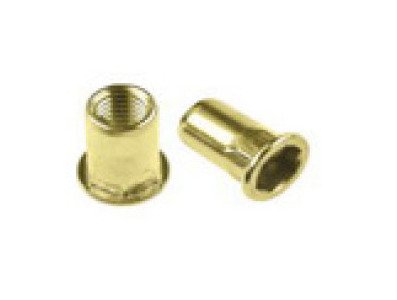

The Ornit K-Series M10 Open End Semi-Hexagon Rivet Nut is a robust fastening solution designed for industrial applications. Constructed from durable steel with a yellow zinc plated finish, this rivet nut offers a secure grip range from 0.7 in to 3.8 mm. With precise dimensions including 17.40 mm length and a semi-hexagon flat head design, this rivet nut ensures reliable performance. It also provides options for stainless steel and aluminum materials, along with serration style choices, meeting diverse industrial requirements.

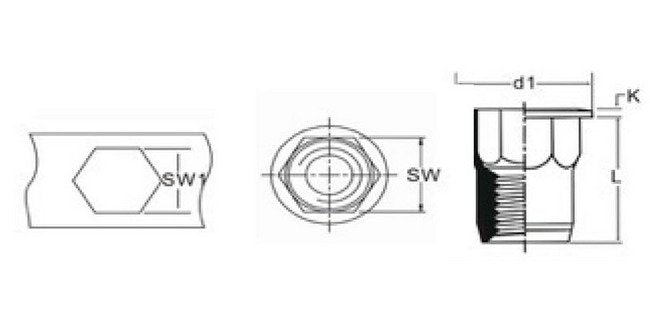

Product Specifications

Dimensions Dimension D1

16.64 mm

Dimensions Dimension K

0.89 mm

Dimensions Dimension L

17.40 mm

Dimensions Dimension Sw

12.70 mm

Dimensions Dimension Sw1

12.70 mm

Dimensions Maximum Grip Range

3.8 mm

Dimensions Minimum Grip Range

0.7 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10
