Ornit K-Series M10 Rivet Nut with Semi-Hexagon Flat Head

Name: Ornit K-Series M10 Rivet Nut with Semi-Hexagon Flat Head
Brand: Ornit USA
SKU: KSE-61ac65
Price: 24.99 USD
Availability: OutOfStock

SKU:KSE-61ac65

Ornit K-Series M10 Rivet Nut for secure, versatile fastening. Steel construction with yellow zinc finish. Stainless Steel & Aluminum options available.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

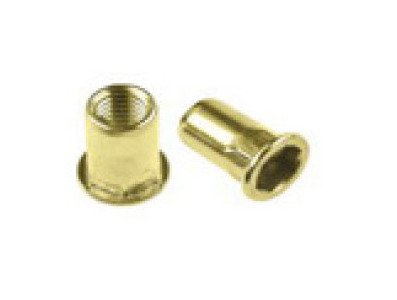

The Ornit K-Series 21.46mm Dimension L and M10 Thread Size Rivet Nut features a durable steel construction with a yellow zinc plated finish. Ideal for a wide range of applications, this rivet nut has a semi-hexagon flat head design for secure fastening. With a minimum grip range of 3.8mm and a maximum grip range of 7.9mm, this rivet nut offers versatility and reliability. Stainless Steel and Aluminum options available. Serration style also offered for customized needs.

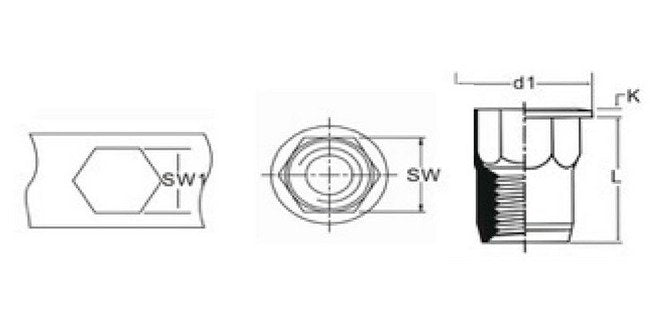

Product Specifications

Dimensions Dimension D1

16.64 mm

Dimensions Dimension K

0.89 mm

Dimensions Dimension L

21.46 mm

Dimensions Dimension Sw

12.70 mm

Dimensions Dimension Sw1

12.70 mm

Dimensions Maximum Grip Range

7.9 mm

Dimensions Minimum Grip Range

3.8 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10
