Ornit K-Series M4 Rivet Nut, 11.05mm L Semi-Hexagon Flat Head

Name: Ornit K-Series M4 Rivet Nut, 11.05mm L Semi-Hexagon Flat Head
Brand: Ornit USA
SKU: KSE-f53b8f
Price: 12.99 USD
Availability: OutOfStock

SKU:KSE-f53b8f

Ornit K-Series M4 Rivet Nut - Durable steel rivet nut with 11.05mm L dimension and semi-hexagon flat head, ideal for secure fastening in diverse applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

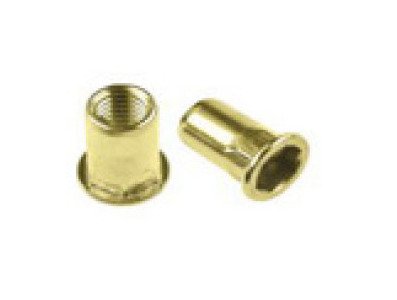

The Ornit K-Series Open End Semi-Hexagon Flat Head Rivet Nut is a durable, high-quality fastening solution suitable for a wide range of applications. Made of sturdy steel with a yellow zinc plated finish, this rivet nut offers reliable performance. With dimensions ranging from 2.0mm to 3.3mm grip range and a precise 11.05mm L dimension, it provides secure fastening in various materials. Explore its versatility with options for stainless steel and aluminum, as well as serration style variations for specific needs.

Product Specifications

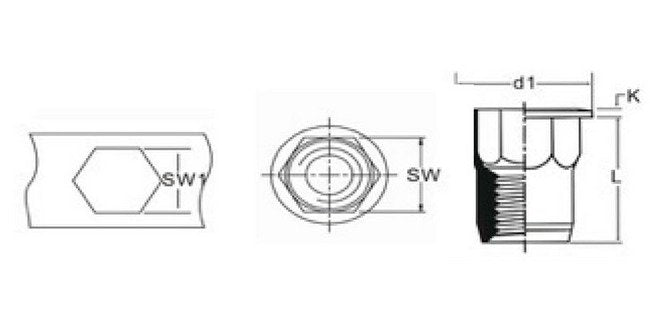

Dimensions Dimension D1

9.53 mm

Dimensions Dimension K

0.68 mm

Dimensions Dimension L

11.05 mm

Dimensions Dimension Sw

6.35 mm

Dimensions Dimension Sw1

6.35 mm

Dimensions Maximum Grip Range

3.3 mm

Dimensions Minimum Grip Range

2.0 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit K-Series M4 Rivet Nut, 11.05mm L Semi-Hexagon Flat Head
