Ornit K-Series M5 Flat Head Imperial Rivet Nut
Ornit K-Series M5 Flat Head Imperial Rivet Nut
SKU:KSE-1b59ec
High-quality Ornit K-Series M5 Flat Head Imperial Rivet Nut for secure and reliable fastening applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Ornit K-Series M5 Flat Head Imperial Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
Ornit K-Series M5 Flat Head Imperial Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

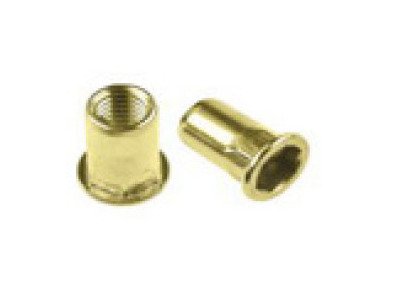

The Ornit K-Series 13.59mm Dimension L and M5 Thread Size Open End Semi-Hexagon Flat Head Rivet Nut is a top-quality fastener designed for secure fastening applications. Made of high-grade steel with a yellow zinc plated finish, it offers exceptional durability and corrosion resistance. With a grip range of 3.3mm to 5.7mm, this rivet nut ensures a strong and reliable connection. The semi-hexagon flat head design provides a flush finish, making it ideal for a wide range of industrial and construction uses. Stainless steel and aluminum options are available, catering to diverse requirements.
Ready to Grow Without Cash Flow Constraints?

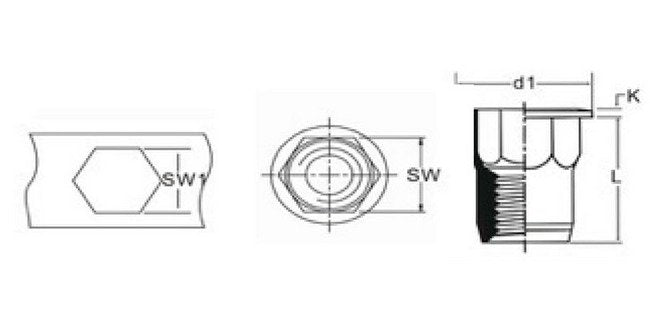

Product Specifications
Dimensions Dimension D1
9.91 mm
Dimensions Dimension K
0.68 mm
Dimensions Dimension L
13.59 mm
Dimensions Dimension Sw
7.10 mm
Dimensions Dimension Sw1
7.14 mm
Dimensions Maximum Grip Range
5.7 mm
Dimensions Minimum Grip Range
3.3 in
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Semi-Hexagon Flat Head (AH)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M5
