Ornit K-Series M5 Open End Rivet Nut - 14.86mm Dimension

Name: Ornit K-Series M5 Open End Rivet Nut - 14.86mm Dimension
Brand: Ornit USA
SKU: KSE-5da3de
Price: 12.99 USD
Availability: OutOfStock

SKU:KSE-5da3de

High-quality Ornit K-Series M5 Open End Rivet Nut for secure and precise fastening. Steel construction with Yellow Zinc Plated finish. Customizable options available.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

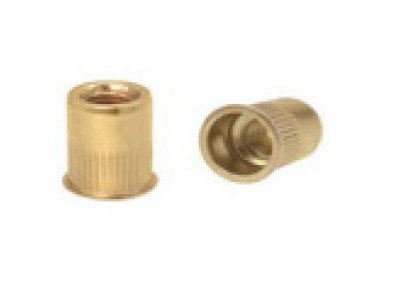

The Ornit K-Series 14.86mm Dimension M5 Open End Rivet Nut is a high-quality fastener designed for a precise fit in a range of applications. Made of durable steel with a Yellow Zinc Plated finish, it offers excellent corrosion resistance and longevity. With a minimum grip range of 3.3mm and a maximum grip range of 5.7mm, this rivet nut provides a secure hold. It meets industry standards and can be customized in Stainless Steel or Aluminum, with optional serration styles available for added versatility.

Product Specifications

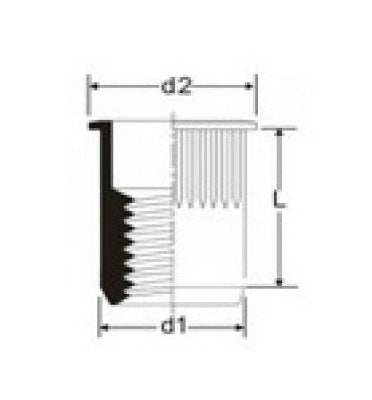

Dimensions Dimension D1

7.52 mm

Dimensions Dimension D2

8.64 mm

Dimensions Dimension K

0.48 mm

Dimensions Dimension L

14.86 mm

Dimensions Hole Size

7.6 mm

Dimensions Maximum Grip Range

5.7 mm

Dimensions Minimum Grip Range

3.3 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Material

Steel

Technical Specs Nut Style

Separation Style 2

Technical Specs Rivet Type

Open End

Technical Specs Thread Size
