Ornit K-Series Open End Countersunk Rivet Nut - 5/16 in. Stainless Steel

Name: Ornit K-Series Open End Countersunk Rivet Nut - 5/16 in. Stainless Steel
Brand: Ornit USA
SKU: KSE-0e2c36
Price: 24.99 USD
Availability: OutOfStock

SKU:KSE-0e2c36

Ornit K-Series Stainless Steel Countersunk Rivet Nut - Durable, Corrosion-Resistant, and Certified for Federal Standards

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit K-Series Open End Countersunk Head (AK) Rivet Nut is a premium fastening solution constructed from stainless steel, ensuring durability and corrosion resistance. With a 0.805-inch Dimension L and a 5/16-24 Thread Size, this rivet nut offers a secure fit with a minimum grip range of 0.150 inches and a maximum grip range of 0.312 inches. The yellow zinc plated finish adds further protection against environmental elements. Certified to meet federal procurement standards and industry-specific certifications, this rivet nut is a reliable choice for both consumer and institutional applications.

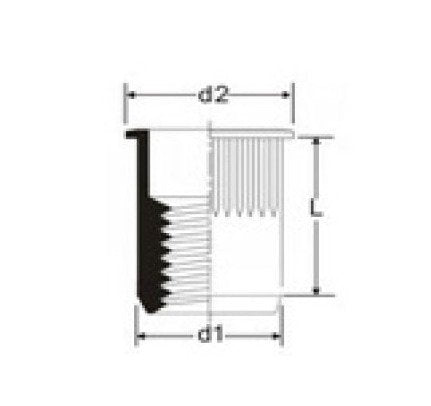

Product Specifications

Dimensions Dimension D1

0.530 in

Dimensions Dimension D2

0.595 in

Dimensions Dimension K

0.022 in

Dimensions Dimension L

0.805 in

Dimensions Hole Size

17/32 in

Dimensions Maximum Grip Range

0.312 in

Dimensions Minimum Grip Range

0.150 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (AK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Style

Serration Style 2

Technical Specs Thread Size

5/16-24
