Ornit K-Series Semi-Hexagon Rivet Nut, M4 Thread, 9.78mm L

Name: Ornit K-Series Semi-Hexagon Rivet Nut, M4 Thread, 9.78mm L
Brand: Ornit USA
SKU: KSE-f659c6
Price: 24.99 USD
Availability: OutOfStock

SKU:KSE-f659c6

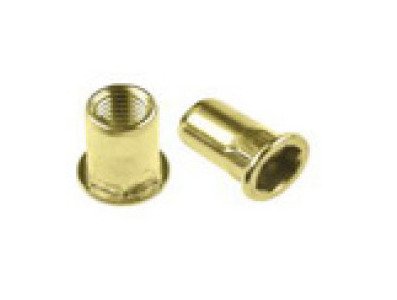

Ornit K-Series Semi-Hexagon Rivet Nut for secure and precise fastening needs. Steel with Yellow Zinc Plating, M4 Thread.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit K-Series Open End Semi-Hexagon Flat Head (AH) Imperial Rivet Nut is a reliable fastening solution for various applications. Made from sturdy steel with a yellow zinc plated finish, this rivet nut offers durability and corrosion resistance. With a Thread Size of M4, it features precise dimensions including a 9.78mm Length (L) and a grip range of 0.500in to 2.0mm. The semi-hexagon flat head design ensures a secure fit and easy installation. Ideal for stainless steel & aluminum with serration style options available, this rivet nut meets stringent industry standards for quality and performance.

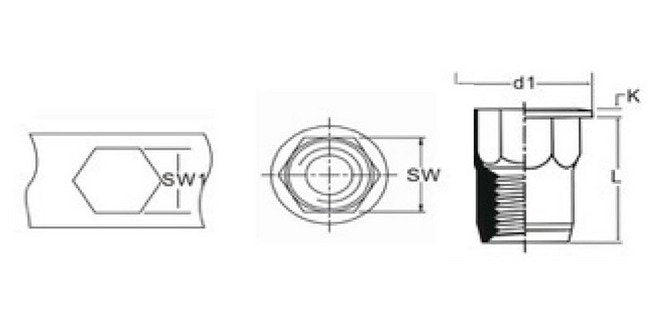

Product Specifications

Dimensions Dimension D1

9.53 mm

Dimensions Dimension K

0.68 mm

Dimensions Dimension L

9.78 mm

Dimensions Dimension Sw

6.35 mm

Dimensions Dimension Sw1

6.35 mm

Dimensions Maximum Grip Range

2.0 mm

Dimensions Minimum Grip Range

0.500 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit K-Series Semi-Hexagon Rivet Nut, M4 Thread, 9.78mm L
