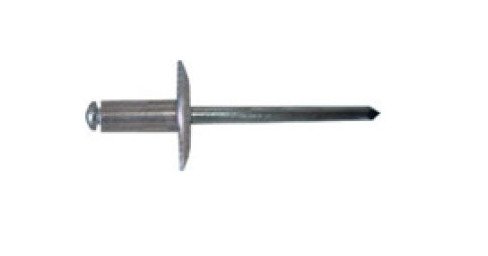

Ornit Large Blind Rivet - 3.2mm x 14.0mm

Name: Ornit Large Blind Rivet - 3.2mm x 14.0mm
Brand: Ornit USA
SKU: OPE-46e0c8
Price: 49.99 USD
Availability: OutOfStock

SKU:OPE-46e0c8

Durable Ornit Large Blind Rivet for secure fastening in industrial applications. Meets Federal/DoD procurement standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your assembly projects with the Ornit Large Blind Rivet. This aluminum alloy rivet features a 3.2mm diameter, 14.0mm body length, and is zinc-plated chromium VI free for enhanced durability. With a nominal tensile force of 100kgf, this rivet ensures secure fastening. Ideal for industrial applications and meets Federal/DoD procurement standards for quality assurance.

Product Specifications

Nominal Dimensions Body Length

14.0 mm | 0.551 in

Nominal Dimensions Diameter

3.2 mm

Nominal Dimensions Drillhole Size

3.3 mm | 0.130 in

Nominal Dimensions Head Diameter

9.5 mm | 0.374 in

Nominal Dimensions Head Thickness

1.20 mm | 0.047 in

Nominal Dimensions Mandrel Diameter

1.81 mm | 0.71 in

Nominal Dimensions Maximum Grip Range

10.5 mm | 0.413 in

Nominal Dimensions Minimum Grip Range

8.5 mm | 0.335 in

Nominal Forces Nominal Shear Force

75 kgf | 165 lbf

Nominal Forces Nominal Tensile Force

100 kgf | 220 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (2.5 mg) to AA 5052

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

6000

Technical Specs Head Style

Large

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel SAE 1006-1022
