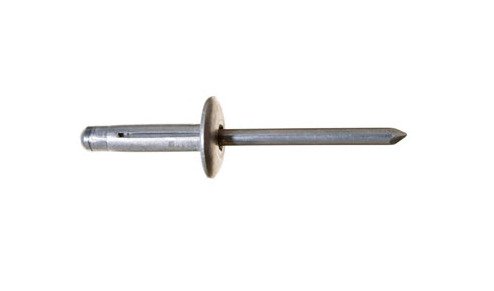

Ornit Large Head Aluminum Rivet 15.3mm
Ornit Large Head Aluminum Rivet 15.3mm
SKU:ORB-c6b42e
Precision engineered aluminum rivet for secure and durable assembly. Ideal for soft materials and automotive applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit Large Head Aluminum Rivet 15.3mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornit Large Head Aluminum Rivet 15.3mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

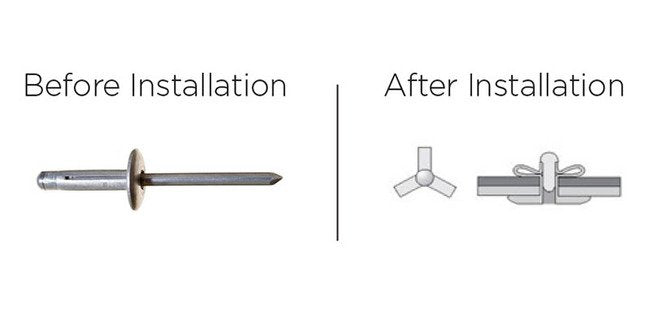

The Ornit Large Head Aluminum Rivet is a high-quality, aluminum alloy fastener specifically designed for secure assembly in various applications. With a large blind side area and a split tail, this rivet offers exceptional grip strength, preventing electrical issues and corrosion. Ideal for soft materials, this rivet creates a highly secure joint, making it perfect for applications like securing rails and automotive components. With a body material of Aluminum Alloy ALmg 2.5 and a maximum grip range of 4.0mm, this rivet ensures reliable and durable fastening in industrial settings.
Product Specifications
Applications Automotive Application
InteriorIt creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
15.3 mm | 0.602 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
4.0 mm | 0.157 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
