Ornit M-Series 15.5mm Steel Rivet Nut
Ornit M-Series 15.5mm Steel Rivet Nut
SKU:MSE-8b0182
Enhance your industrial projects with the Ornit M-Series 15.5mm Steel Rivet Nut for secure and flush fastening. Available in steel with zinc-plated finish, offering durability and versatility.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Ornit M-Series 15.5mm Steel Rivet Nut
$24.99
Quantity: 1
Claim Your Seller Account
Ornit M-Series 15.5mm Steel Rivet Nut
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

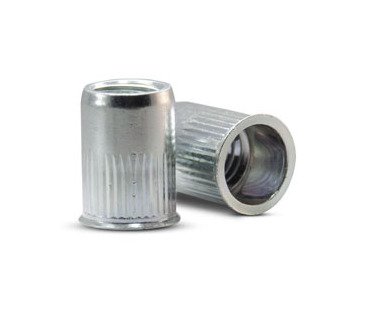

The Ornit M-Series 15.5mm Steel Rivet Nut is a high-quality fastening solution designed for industrial applications. Made of steel with a zinc-plated finish, this rivet nut features an open-end design and a reduced countersunk head for a secure and flush fit. With dimensions ranging from 0.5mm to 3.0mm grip range and a 11.0mm hole size, it offers versatility and durability. Available in stainless steel and aluminum variants, this rivet nut meets stringent industry standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

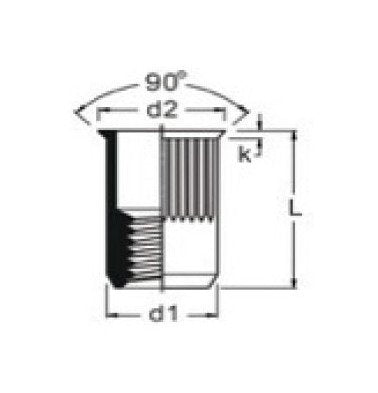

Dimensions Dimension D1
10.9 mm
Dimensions Dimension L
15.5 mm
Dimensions Hole Size
11.0 mm
Dimensions Maximum Dimension D2
12.0 mm
Dimensions Maximum Dimension K
0.6 mm
Dimensions Maximum Grip Range
3.0 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Reduced Countersunk Head (Small)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M8
