Ornit M-Series 18.0mm M4 Closed End Countersunk Rivet Nut

Name: Ornit M-Series 18.0mm M4 Closed End Countersunk Rivet Nut
Brand: Ornit USA
SKU: MSE-9fafd6
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-9fafd6

Premium Ornit M-Series 18.0mm M4 Closed End Rivet Nut for secure and flush fastenings in industrial applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

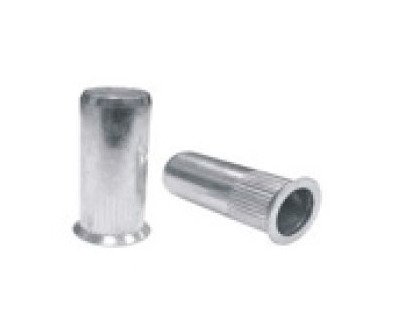

The Ornit M-Series 18.0mm M4 Closed End Countersunk Rivet Nut is a durable and reliable fastening solution designed for industrial applications. Made of high-quality steel with a zinc-plated finish, it offers exceptional corrosion resistance. With precise dimensions and a grip range of 1.5mm to 4.0mm, this rivet nut ensures secure and sturdy fastenings. The large countersunk head provides a flush surface, ideal for streamlined installations. Available in stainless steel and aluminum variants, this rivet nut meets stringent industry standards for performance and durability.

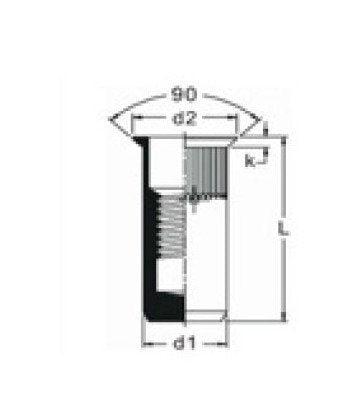

Product Specifications

Dimensions Dimension D1

5.9 mm

Dimensions Dimension L

18.0 mm

Dimensions Hole Size

6.0 mm

Dimensions Maximum Dimension D2

8.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

Ornit M-Series 18.0mm M4 Closed End Countersunk Rivet Nut
