Ornit M-Series 23.0mm M5 Closed End Countersunk Head Rivet Nut

Name: Ornit M-Series 23.0mm M5 Closed End Countersunk Head Rivet Nut
Brand: Ornit USA
SKU: MSE-7ec2d7
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-7ec2d7

Ornit M-Series Rivet Nut: Steel, M5 Thread, 23.0mm, Countersunk Head, Secure Fastening

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

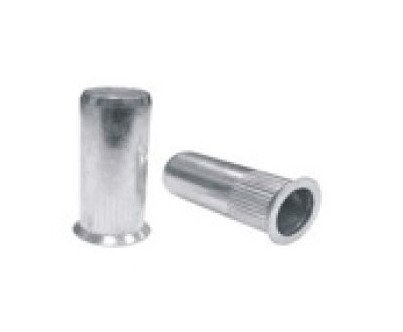

The Ornit M-Series 23.0mm M5 Closed End Countersunk Head Rivet Nut is a premium steel fastener with a zinc-plated finish, designed for secure and durable fastening applications. With dimensions that ensure a grip range of 4.0mm to 6.5mm, this rivet nut is suitable for a variety of industrial and construction projects. Its large countersunk head style provides a flush finish, and the option for stainless steel or aluminum materials caters to specific preferences. Compliant with federal procurement standards and suitable for various industries, this rivet nut guarantees reliable performance and longevity.

Product Specifications

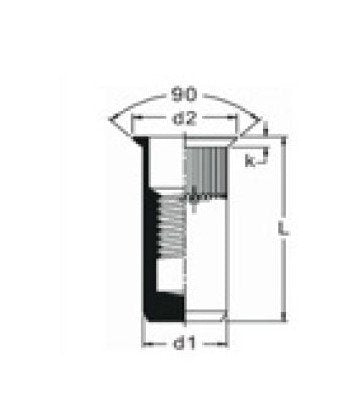

Dimensions Dimension D1

6.9 mm

Dimensions Dimension L

23.0 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Dimension D2

9.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

Ornit M-Series 23.0mm M5 Closed End Countersunk Head Rivet Nut
