Ornit M-Series 27.5mm M8 Thread Closed End Rivet Nut

Ornit M-Series 27.5mm M8 Thread Closed End Rivet Nut

SKU:MSE-f29afa

High-quality Ornit M-Series 27.5mm M8 Thread Closed End Rivet Nut for secure and flush fastening.

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

Ornit M-Series 27.5mm M8 Thread Closed End Rivet Nut

Ornit M-Series 27.5mm M8 Thread Closed End Rivet Nut

$14.99

Quantity: 1

Claim Your Seller Account

Ornit M-Series 27.5mm M8 Thread Closed End Rivet Nut

Ornit M-Series 27.5mm M8 Thread Closed End Rivet Nut

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Ornit M-Series 27.5mm M8 Thread Closed End Countersunk Head (Large) Rivet Nut is a high-quality fastening solution constructed from durable steel with a corrosion-resistant zinc plated finish. With a grip range of 1.5mm to 4.0mm and a large countersunk head design, this rivet nut ensures a secure and flush fit in various materials. Ideal for industrial applications, it offers outstanding performance and reliability. Available in stainless steel and aluminum options for added versatility.

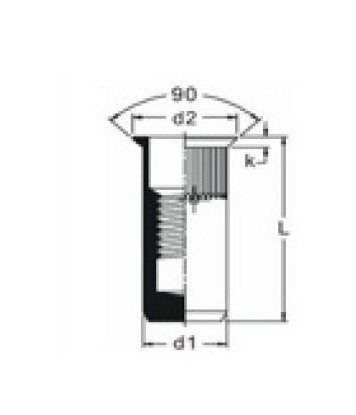

Product Specifications

Dimensions Dimension D1
10.9 mm
Dimensions Dimension L
27.5 mm
Dimensions Hole Size
11.0 mm
Dimensions Maximum Dimension D2
13.4 mm
Dimensions Maximum Dimension K
1.5 mm
Dimensions Maximum Grip Range
4.0 mm
Dimensions Minimum Grip Range
1.5 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Countersunk Head (Large)
Technical Specs Material
Steel
Technical Specs Rivet Type
Closed End
Technical Specs Thread Size
M8
