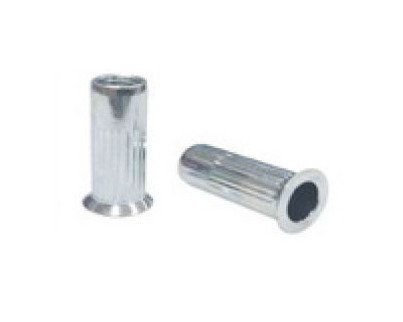

Ornit M-Series Large Countersunk Head Steel Rivet Nut, M4 Thread, 12.5mm L

Name: Ornit M-Series Large Countersunk Head Steel Rivet Nut, M4 Thread, 12.5mm L
Brand: Ornit USA
SKU: MSE-0015a3
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-0015a3

High-quality Ornit M-Series Rivet Nut for secure and flush fastening in various applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit M-Series 12.5mm Dimension L and M4 Thread Size Open End Countersunk Head Rivet Nut is a durable and reliable fastening solution for various applications. Made of high-quality zinc-plated steel, this rivet nut offers a secure grip range of 1.5mm to 4.0mm. With a large countersunk head design, it ensures a flush finish and excellent aesthetics. Ideal for industrial and construction projects, it is compatible with a 6.0mm hole size, providing versatility and strength. Explore stainless steel and aluminum options for specialized requirements.

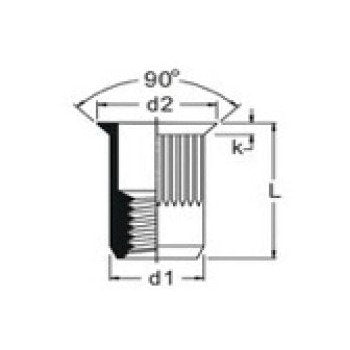

Product Specifications

Dimensions Dimension D1

5.9 mm

Dimensions Dimension L

12.5 mm

Dimensions Hole Size

6.0 mm

Dimensions Maximum Dimension D2

8.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit M-Series Large Countersunk Head Steel Rivet Nut, M4 Thread, 12.5mm L
