Ornit M-Series M10 Semi-Hexagon Rivet Nut

Name: Ornit M-Series M10 Semi-Hexagon Rivet Nut
Brand: Ornit USA
SKU: MSE-697930
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-697930

Ornit M10 Semi-Hexagon Rivet Nut - Stainless Steel, Reduced Countersunk Head, Ideal for Steel & Aluminum.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

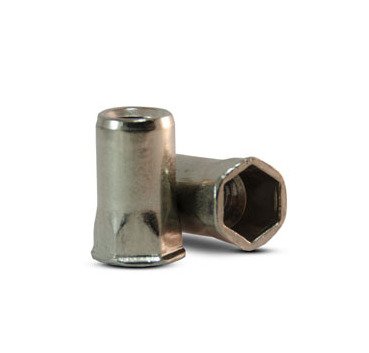

The Ornit M-Series M10 Semi-Hexagon Rivet Nut is crafted from high-quality stainless steel, featuring a reduced countersunk head design for a secure and aesthetically pleasing finish. With a thread size of M10 and SW 13.0, this rivet nut offers a precise fit in various applications. Its natural finish enhances durability, making it ideal for both steel and aluminum constructions. With dimensions designed for a grip range of 1.0mm to 4.0mm, hole size of 13.1mm, and compact overall measurements, this rivet nut ensures reliable performance and easy installation.

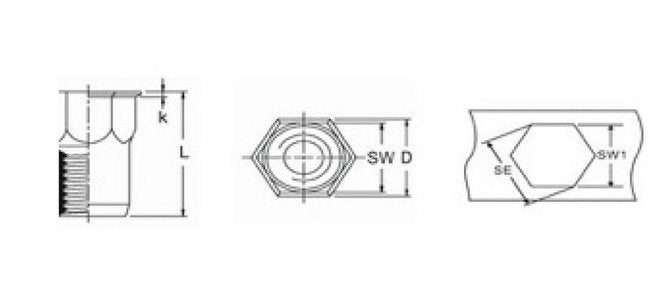

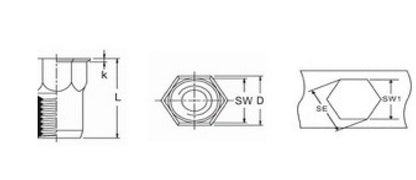

Product Specifications

Dimensions Dimension D1

14.7 mm

Dimensions Dimension L

20.5 mm

Dimensions Hole Size

13.1 mm

Dimensions Maximum Dimension D2

13.9 mm

Dimensions Maximum Dimension K

0.8 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Stainless Steel

Technical Specs Rivet Type

Semi-Hexagone

Technical Specs Thread Size

M10 | SW 13.0

Ornit M-Series M10 Semi-Hexagon Rivet Nut
