Ornit M-Series M10 Stainless Steel Semi-Hex Rivet Nut

Name: Ornit M-Series M10 Stainless Steel Semi-Hex Rivet Nut
Brand: Ornit USA
SKU: MSE-767959
Price: 25.99 USD
Availability: OutOfStock

SKU:MSE-767959

High-quality Ornit M10 Stainless Steel Rivet Nut for durable and secure fastening solutions.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

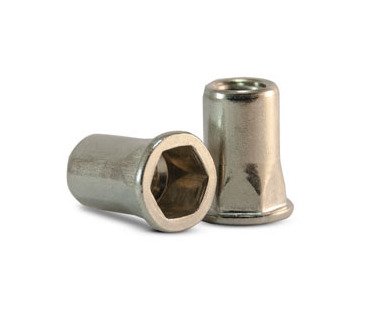

The Ornit M-Series M10 Tread Size Semi-Hexagon Cylindrical Head (Flat) Rivet Nut is a top-quality fastener designed for industrial applications. Made of durable Stainless Steel A2 with a natural finish, this rivet nut offers a secure grip range from 1.0mm to 4.0mm. With precise dimensions and a flat cylindrical head, it provides reliable fastening solutions for a range of materials. This product is built to meet strict institutional procurement standards for durability and performance.

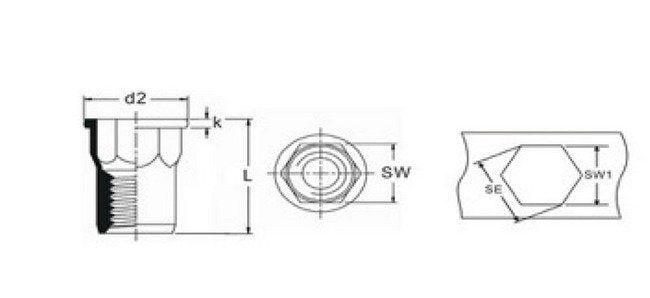

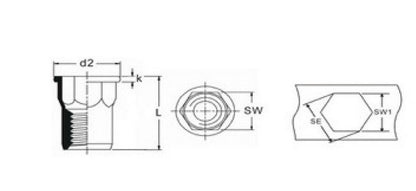

Product Specifications

Dimensions Dimension D1

14.7 mm

Dimensions Dimension L

24.0 mm

Dimensions Hole Size

13.1 mm

Dimensions Maximum Dimension D2

16.3 mm

Dimensions Maximum Dimension K

2.0 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Stainless Steel A2

Technical Specs Rivet Type

Semi-Hexagone

Technical Specs Thread Size

M10 | SW 13.0

Ornit M-Series M10 Stainless Steel Semi-Hex Rivet Nut
