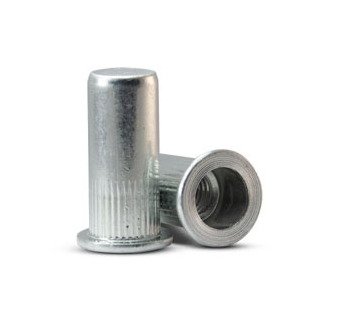

Ornit M-Series M4 Closed End Rivet Nut
Ornit M-Series M4 Closed End Rivet Nut
SKU:MSE-4f671c
Ornit M-Series M4 Closed End Rivet Nut - High-quality steel rivet nut with zinc-plated finish, suitable for various applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Ornit M-Series M4 Closed End Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
Ornit M-Series M4 Closed End Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit M-Series 16.0mm Dimension L and M4 Thread Size Closed End Cylindrical Head Rivet Nut is a high-quality, steel-made fastening solution perfect for a wide range of applications. With a zinc-plated finish for enhanced durability, it offers a minimum grip range of 0.5mm and a maximum grip range of 3.0mm. The cylindrical head design ensures a secure and flush fit, while the various dimensions cater to diverse hole sizes and installations. Note: Stainless Steel & Aluminum options available.

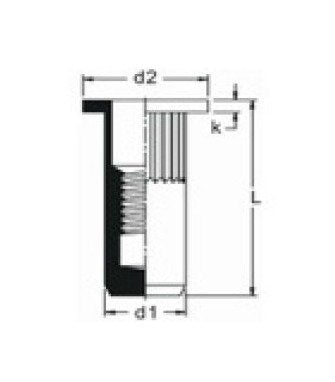

Product Specifications
Dimensions Dimension D1
5.9 mm
Dimensions Dimension L
16.0 mm
Dimensions Hole Size
6.0 mm
Dimensions Maximum Dimension D2
9.0 mm
Dimensions Maximum Dimension K
1.0 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Maximum Grip Range
3.0 mm
Technical Specs Minimum Grip Range
0.5 mm
Technical Specs Rivet Type
Closed End
Technical Specs Thread Size
M4
