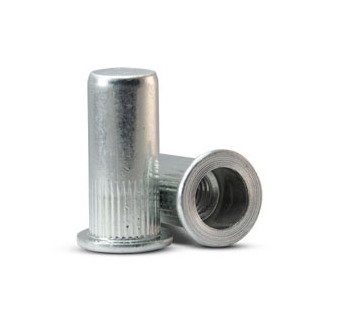

The Ornit M-Series 22.0mm Dimension L and M5 Thread Size Closed End Cylindrical Head Rivet Nut is a durable and reliable solution for fastening applications. Made of steel with a zinc plated finish, it offers a minimum grip range of 3.0mm and a maximum grip range of 5.5mm. With a flat cylindrical head design, this rivet nut ensures strong and secure fastening. Available in stainless steel and aluminum variants, it meets stringent industrial standards for quality and performance.
Product Specifications

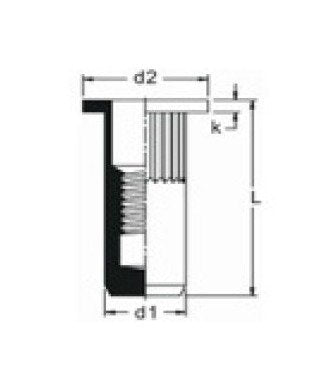

Dimensions Dimension D1
6.9 mm
Dimensions Dimension L
22.0 mm
Dimensions Hole Size
7.0 mm
Dimensions Maximum Dimension D2
10.0 mm
Dimensions Maximum Dimension K
1.0 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Maximum Grip Range
5.5 mm
Technical Specs Minimum Grip Range
3.0 mm
Technical Specs Rivet Type
Closed End
Technical Specs Thread Size
M5
