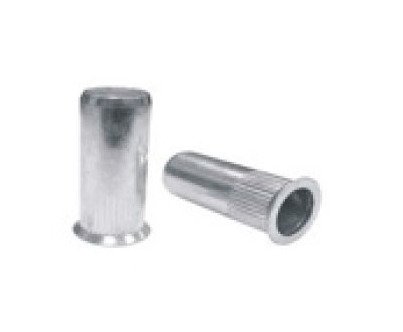

Ornit M-Series M5 Rivet Nut - 20.0mm L, Closed End Countersunk Head

Name: Ornit M-Series M5 Rivet Nut - 20.0mm L, Closed End Countersunk Head
Brand: Ornit USA
SKU: MSE-bfed53
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-bfed53

Ornit M5 Rivet Nut - Durable steel with zinc finish, precise dimensions, secure grip range. Meets industry standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

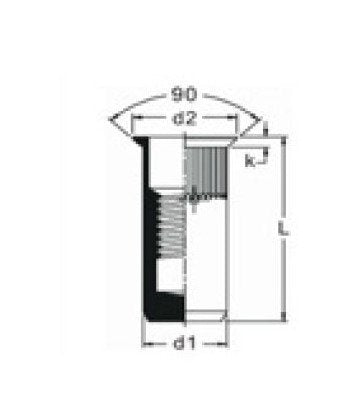

The Ornit M-Series 20.0mm Dimension L and M5 Thread Size Closed End Countersunk Head Rivet Nut is a high-quality fastening solution for various applications. Made of durable steel with a zinc-plated finish, this rivet nut offers a secure grip range of 1.5mm to 4.0mm. With dimensions designed for precision, including a 7.0mm hole size and dimensions d1 of 6.9mm, d2 of 9.4mm, and K of 1.5mm, this rivet nut ensures reliable performance. It meets industry standards and is also available in stainless steel and aluminum options.

Product Specifications

Dimensions Dimension D1

6.9 mm

Dimensions Dimension L

20.0 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Dimension D2

9.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

Ornit M-Series M5 Rivet Nut - 20.0mm L, Closed End Countersunk Head
