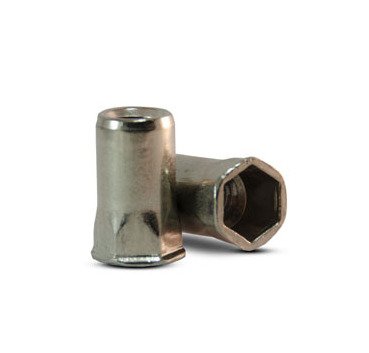

Ornit M-Series M5 Semi-Hexagon Rivet Nut
Ornit M-Series M5 Semi-Hexagon Rivet Nut
SKU:MSE-e7ec28
High-quality stainless steel M5 rivet nut with reduced countersunk head. Durable, corrosion-resistant, and versatile for various applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Ornit M-Series M5 Semi-Hexagon Rivet Nut
$24.99
Quantity: 1
Claim Your Seller Account
Ornit M-Series M5 Semi-Hexagon Rivet Nut
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit M-Series M5 Semi-Hexagon Rivet Nut features a reduced countersunk head suitable for a range of applications. Made of high-quality stainless steel with a natural finish, it offers durability and corrosion resistance. With dimensions L: 14.0 mm and a grip range of 0.5-3.0 mm, this rivet nut ensures secure fastening. Ideal for steel and aluminum, meeting stringent procurement standards.

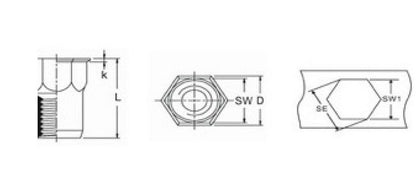

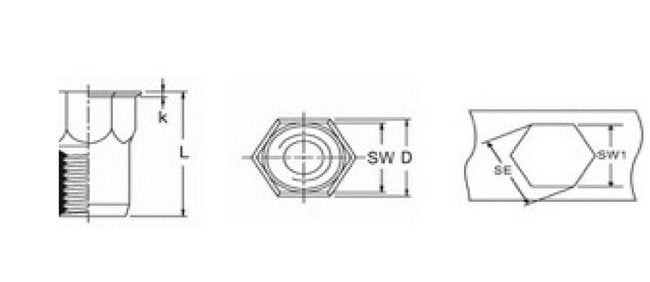

Product Specifications
Dimensions Dimension D1
7.9 mm
Dimensions Dimension L
14.0 mm
Dimensions Hole Size
7.1 mm
Dimensions Maximum Dimension D2
7.5 mm
Dimensions Maximum Dimension K
0.6 mm
Dimensions Maximum Grip Range
3.0 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Natural
Technical Specs Head Style
Reduced Countersunk Head (Small)
Technical Specs Material
Stainless Steel
Technical Specs Rivet Type
Semi-Hexagone
Technical Specs Thread Size
M5 | SW 7.0
