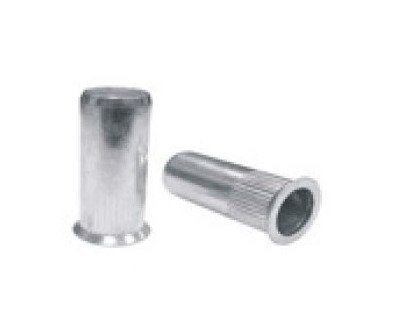

Ornit M-Series M6 Thread Closed End Rivet Nut, 28.5mm L, Countersunk Head (Large)

Name: Ornit M-Series M6 Thread Closed End Rivet Nut, 28.5mm L, Countersunk Head (Large)
Brand: Ornit USA
SKU: MSE-ecf91a
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-ecf91a

High-quality Ornit M-Series M6 Closed End Rivet Nut for strong, secure connections. Versatile and easy to install.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit M-Series Closed End Countersunk Head Rivet Nut is a reliable and durable fastening solution suitable for a range of applications. Made of high-quality steel with a zinc plated finish, this rivet nut ensures strong and secure connections. With precise dimensions and a grip range of 6.5mm to 9.0mm, it offers versatility and ease of installation. Designed for efficiency, its large countersunk head provides a flush finish, making it ideal for projects requiring a professional appearance. Available in stainless steel and aluminum variants, this rivet nut meets industry standards for performance and durability.

Product Specifications

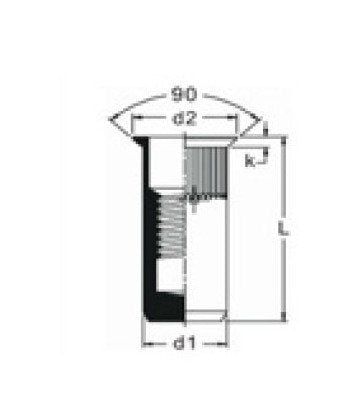

Dimensions Dimension D1

8.9 mm

Dimensions Dimension L

28.5 mm

Dimensions Hole Size

9.0 mm

Dimensions Maximum Dimension D2

11.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

9.0 mm

Dimensions Minimum Grip Range

6.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

Ornit M-Series M6 Thread Closed End Rivet Nut, 28.5mm L, Countersunk Head (Large)
