Ornit M-Series M8 Semi-Hexagon Rivet Nut

Name: Ornit M-Series M8 Semi-Hexagon Rivet Nut
Brand: Ornit USA
SKU: MSE-76a604
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-76a604

Ornit M8 Semi-Hexagon Rivet Nut - Stainless steel, reduced countersunk head, secure grip range 0.5-3.0mm. Versatile & durable.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

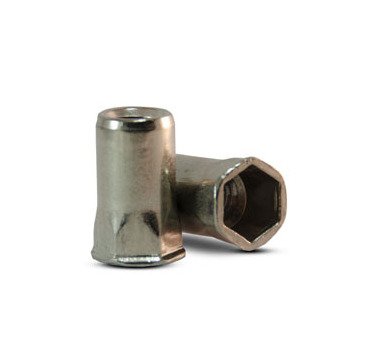

The Ornit M-Series M8 Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nut is a high-quality fastening solution ideal for a wide range of applications. Made from stainless steel with a natural finish, this rivet nut offers exceptional durability and corrosion resistance. With a thread size of M8 and small reduced countersunk head, it ensures a secure grip range from 0.5mm to 3.0mm. Suitable for steel and aluminum materials, this rivet nut is versatile and reliable for various projects.

Product Specifications

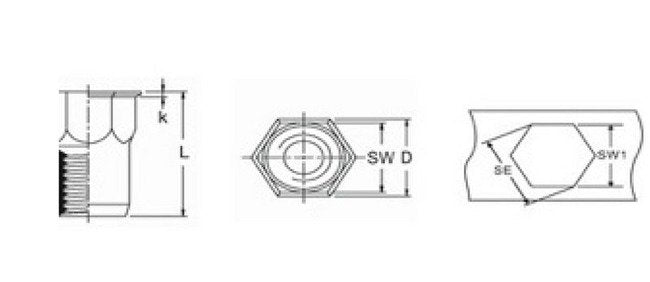

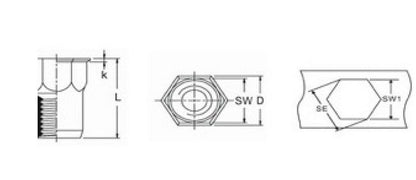

Dimensions Dimension D1

12.4 mm

Dimensions Dimension L

17.0 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Dimension D2

11.5 mm

Dimensions Maximum Dimension K

0.6 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Stainless Steel

Technical Specs Rivet Type

Semi-Hexagone

Technical Specs Thread Size

M8 | SW 11.0

Ornit M-Series M8 Semi-Hexagon Rivet Nut
