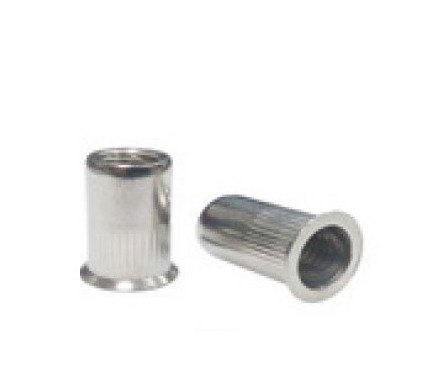

Ornit M10 Stainless Steel Rivet Nut - 24.0mm L, Open End Countersunk Head
Ornit M10 Stainless Steel Rivet Nut - 24.0mm L, Open End Countersunk Head
SKU:MSE-86720e
Premium Ornit M10 Stainless Steel Rivet Nut for secure fastening in diverse applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Ornit M10 Stainless Steel Rivet Nut - 24.0mm L, Open End Countersunk Head
$12.99
Quantity: 1
Claim Your Seller Account
Ornit M10 Stainless Steel Rivet Nut - 24.0mm L, Open End Countersunk Head
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit M-Series 24.0mm Rivet Nut with M10 Thread Size and Large Countersunk Head is expertly crafted from stainless steel, offering durability and corrosion resistance. With a versatile grip range of 4.5mm to 7.5mm and a precise hole size of 13.0mm, this rivet nut ensures secure fastening in various applications. Compliant with federal procurement standards, it meets the stringent quality requirements for government and institutional use, making it a reliable choice for industrial projects.

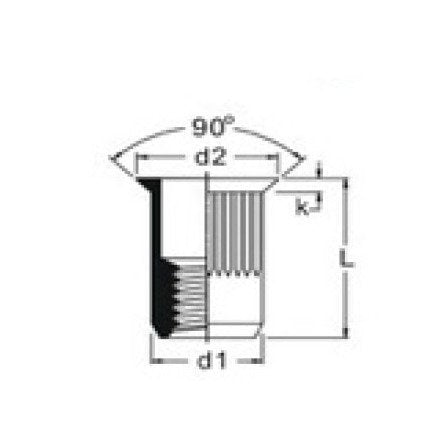

Product Specifications
Dimensions Dimension D1
12.9 mm
Dimensions Dimension L
24.0 mm
Dimensions Hole Size
13.0 mm
Dimensions Maximum Dimension D2
15.7 mm
Dimensions Maximum Dimension K
1.8 mm
Dimensions Maximum Grip Range
7.5 mm
Dimensions Minimum Grip Range
4.5 mm
Note Note
Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Natural
Technical Specs Head Style
Countersunk Head (Large)
Technical Specs Material
Stainless Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M10
