Ornit M12 Steel Rivet Nut - Countersunk Head (Large) - 24.5mm L
Ornit M12 Steel Rivet Nut - Countersunk Head (Large) - 24.5mm L
SKU:MSE-115046

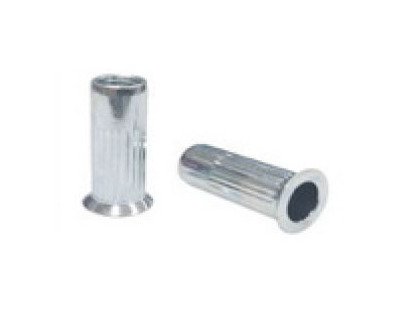

Ornit M12 Steel Rivet Nut - 24.5mm Length, Zinc Plated, Open End, Countersunk Head. Secure grip range 2.0-4.5mm.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Ornit M12 Steel Rivet Nut - Countersunk Head (Large) - 24.5mm L
$9.99
Quantity: 1
Claim Your Seller Account
Ornit M12 Steel Rivet Nut - Countersunk Head (Large) - 24.5mm L
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit M-Series Steel Rivet Nut features a 24.5mm Length, M12 Thread Size, and a durable Zinc Plated finish. Designed with an Open End and a Countersunk Head (Large), it offers a secure grip range of 2.0mm to 4.5mm. Meet various fastening needs with this high-quality rivet nut that is also available in Stainless Steel & Aluminum.

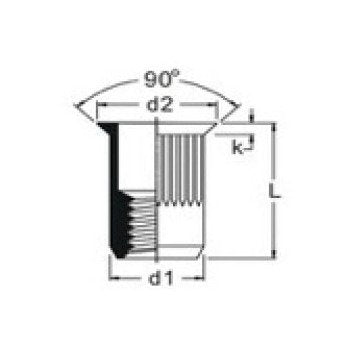

Product Specifications
Dimensions Dimension D1
16.0 mm
Dimensions Dimension L
24.5 mm
Dimensions Hole Size
16.0 mm
Dimensions Maximum Dimension D2
19.2 mm
Dimensions Maximum Dimension K
1.9 mm
Dimensions Maximum Grip Range
4.5 mm
Dimensions Minimum Grip Range
2.0 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Countersunk Head (Large)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M12
