Ornit M6 Semi-Hex Reduced Countersunk Rivet Nut

Name: Ornit M6 Semi-Hex Reduced Countersunk Rivet Nut
Brand: Ornit USA
SKU: MSE-1801ba
Price: 15.99 USD
Availability: OutOfStock

SKU:MSE-1801ba

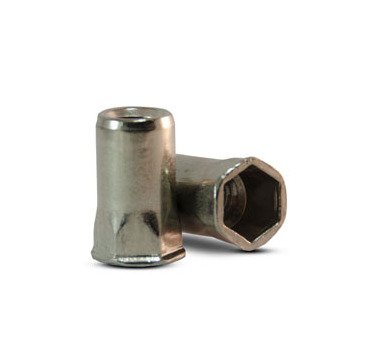

Ornit M6 Semi-Hex Rivet Nut - stainless steel, precise grip range, ideal for various applications

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit M-Series M6 Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nut is a top-of-the-line fastening solution made from stainless steel with a natural finish. With precise dimensions ensuring a grip range of 0.5mm to 3.0mm, this rivet nut is ideal for various applications in construction and manufacturing. Ornit offers options in both steel and aluminum for added versatility. Compliant with federal procurement standards and industry certification requirements, this rivet nut guarantees high performance and durability.

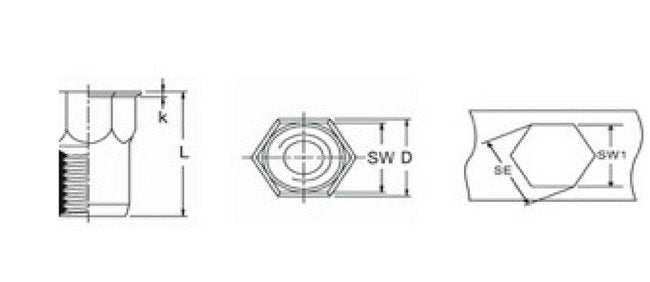

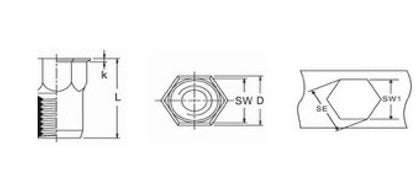

Product Specifications

Dimensions Dimension D1

10.2 mm

Dimensions Dimension L

16.0 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Dimension D2

9.5 mm

Dimensions Maximum Dimension K

0.6 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Stainless Steel

Technical Specs Rivet Type

Semi-Hexagone

Technical Specs Thread Size

M6 | SW 9.0

Ornit M6 Semi-Hex Reduced Countersunk Rivet Nut
