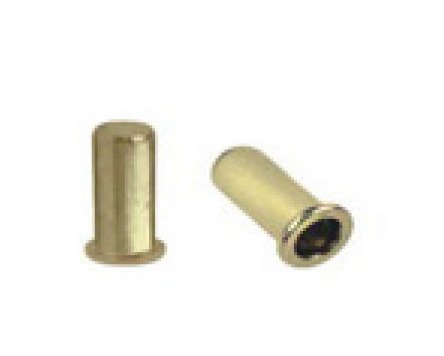

Ornit M8 Rivet Nut, 24.0mm L, Open End Cylindrical Head

Name: Ornit M8 Rivet Nut, 24.0mm L, Open End Cylindrical Head
Brand: Ornit USA
SKU: PSE-9ca92b
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-9ca92b

Securely fasten materials with the Ornit M8 Rivet Nut, 24.0mm L, Cylindrical Head.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 24.0mm Dimension L M8 Rivet Nut is a durable and reliable fastening solution made of high-grade steel with a yellow zinc plated finish. Featuring a cylindrical head design, this rivet nut ensures secure fastening for materials with a minimum grip range of 2.5mm to a maximum of 4.0mm. With precise dimensions and the option for stainless steel or aluminum, it meets stringent industry standards and offers versatile applications in various settings.

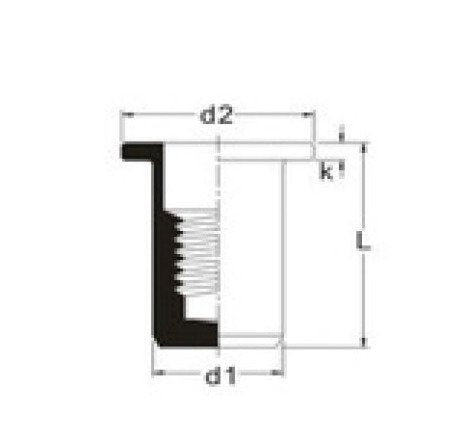

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

14.0 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

24.0 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit M8 Rivet Nut, 24.0mm L, Open End Cylindrical Head
