Ornit Mega Bulb 28.0mm Aluminum Rivet
Ornit Mega Bulb 28.0mm Aluminum Rivet
SKU:MEG-1e79ff

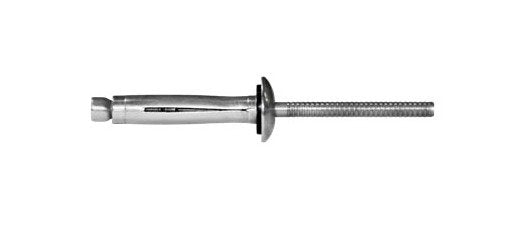

Ornit Mega Bulb 28.0mm Aluminum Rivet - High-quality aluminum alloy fastener for secure joints. Neoprene washer included for enhanced sealing.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit Mega Bulb 28.0mm Aluminum Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit Mega Bulb 28.0mm Aluminum Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

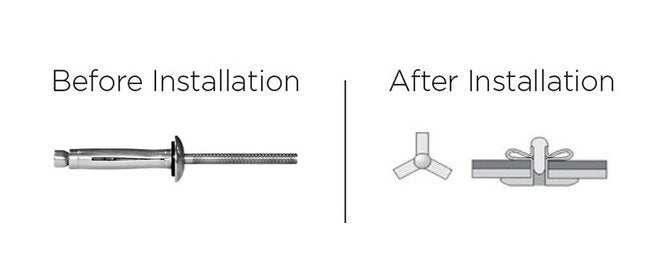

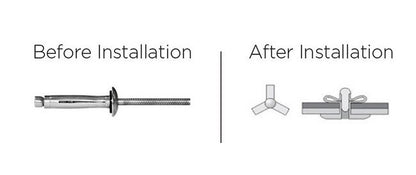

The Ornit Mega Bulb 28.0mm Aluminum Rivet is a high-quality fastener designed for secure joint formation in various vehicle components. Made from aluminum alloy ALmg 5.0, it features a split tail for multi-grip functionality. With a large blind side area, this rivet ensures reliable performance and durability. Suitable for a range of applications, it offers a nominal shear force of 316 kgf and a nominal tensile force of 203 kgf, providing strength and stability. The inclusion of a Neoprene washer enhances its sealing capabilities, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Nominal Dimensions Body Length
28.0 mm | 1.102 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.15 to 5.35 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
11.3 mm | 0.445 in
Nominal Dimensions Head Thickness
2.15 mm | 0.085 in
Nominal Dimensions Mandrel Diameter
2.6 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
14.3 mm | 0.563 in
Nominal Dimensions Minimum Grip Range
9.5 mm | 0.374 in
Nominal Forces Nominal Shear Force
316 kgf | 695 lbf
Nominal Forces Nominal Tensile Force
203 kgf | 447 lbf
Note Note
Available with Neoprene washer
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 5.0 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1000
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
