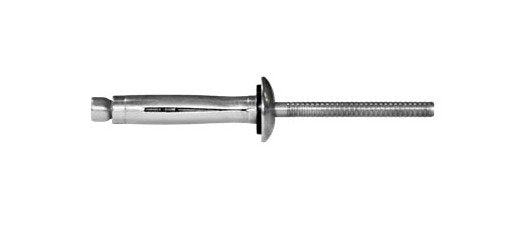

Ornit Mega Bulb Aluminum Rivet - 32.5mm Body Length
Ornit Mega Bulb Aluminum Rivet - 32.5mm Body Length
SKU:MEG-c96bf1
Secure joints with precision using Ornit Mega Bulb Aluminum Rivets - ideal for automotive applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Ornit Mega Bulb Aluminum Rivet - 32.5mm Body Length
$89.99
Quantity: 1
Claim Your Seller Account
Ornit Mega Bulb Aluminum Rivet - 32.5mm Body Length
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

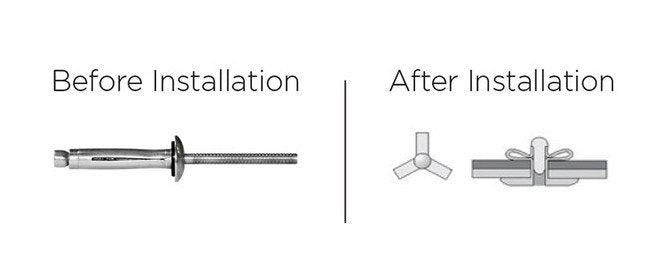

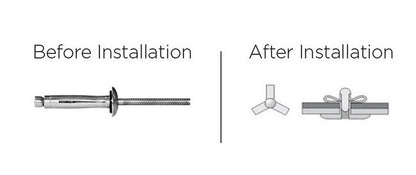

Upgrade your vehicle components with the high-security Ornit Mega Bulb Aluminum Rivet. This aluminum alloy multi-grip fastener provides a secure joint, meeting rigorous safety standards for automotive applications. With a large blind side area and split tail design, it ensures reliability and durability. Each carton contains 1000 rivets with a natural finish, suitable for various grip ranges and forces. Enhance your vehicle assembly with these premium quality rivets, trusted by professionals and compliant with industry standards.
Product Specifications
Nominal Dimensions Body Length
32.5 mm | 1.280 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.15 to 5.35 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
11.3 mm | 0.445 in
Nominal Dimensions Head Thickness
2.15 mm | 0.085 in
Nominal Dimensions Mandrel Diameter
2.6 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
19.0 mm | 0.748 in
Nominal Dimensions Minimum Grip Range
14.3 mm | 0.563 in
Nominal Forces Nominal Shear Force
316 kgf | 695 lbf
Nominal Forces Nominal Tensile Force
203 kgf | 447 lbf
Note Note
Available with Neoprene washer
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 5.0 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1000
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
