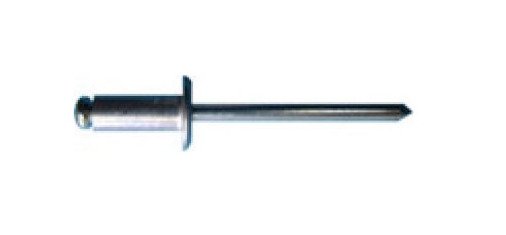

Ornit Open End Dome Blind Rivet - 3.2mm x 12.0mm, Aluminum Alloy AA 5052

Name: Ornit Open End Dome Blind Rivet - 3.2mm x 12.0mm, Aluminum Alloy AA 5052
Brand: Ornit USA
SKU: OPE-4b2d2d
Price: 129.99 USD
Availability: OutOfStock

SKU:OPE-4b2d2d

Premium Ornit Dome Blind Rivet - Strong, Reliable, Aluminum Alloy AA 5052, Ideal for Various Applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit Open End Dome Blind Rivet is a durable fastening solution designed for a wide range of applications. With a 3.2mm diameter and 12.0mm body length, it offers reliable performance in joining materials. Crafted with high-quality Aluminum Alloy AA 5052 body material and low carbon steel SAE 1006-1022 mandrel, it ensures strength and corrosion resistance. Ideal for industrial, construction, and automotive sectors, meeting stringent standards for shear and tensile force capabilities.

Product Specifications

Nominal Dimensions Body Length

12.0 mm | 0.472 in

Nominal Dimensions Diameter

3.2 mm

Nominal Dimensions Drillhole Size

3.3 mm | 0.130 in

Nominal Dimensions Head Diameter

6.3 mm | 0.248 in

Nominal Dimensions Head Thickness

0.90 mm | 0.035 in

Nominal Dimensions Mandrel Diameter

1.81 mm | 0.071 in

Nominal Dimensions Maximum Grip Range

8.5 mm | 0.335 in

Nominal Dimensions Minimum Grip Range

6.5 mm | 0.256 in

Nominal Forces Nominal Shear Force

75 kgf | 165 lbf

Nominal Forces Nominal Tensile Force

100 kgf | 220 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (2.5 mg) to AA 5052

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

10000

Technical Specs Head Style

Dome

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel SAE 1006-1022

Ornit Open End Dome Blind Rivet - 3.2mm x 12.0mm, Aluminum Alloy AA 5052
