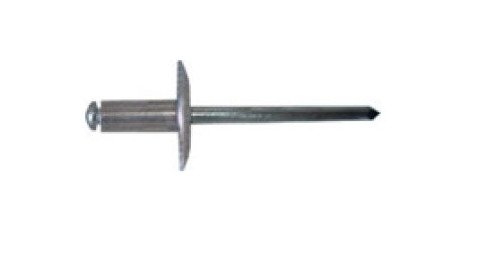

Ornit Open End Large Blind Rivet 4.0mm x 22.0mm
Ornit Open End Large Blind Rivet 4.0mm x 22.0mm
SKU:OPE-84a58a
Durable Ornit Open End Large Blind Rivet, 4.0mm x 22.0mm, high strength for heavy-duty applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit Open End Large Blind Rivet 4.0mm x 22.0mm
$59.99
Quantity: 1
Claim Your Seller Account
Ornit Open End Large Blind Rivet 4.0mm x 22.0mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit Open End Large Blind Rivet features a 4.0mm diameter and 22.0mm body length, perfect for heavy-duty applications. Crafted from high-quality Aluminum Alloy AA 5052 and Low Carbon Steel SAE 1006-1022 mandrel, this rivet guarantees durability and strength. With a nominal shear force of 100 kgf and a nominal tensile force of 160 kgf, it meets stringent industrial standards, making it ideal for both consumer and institutional use.
Product Specifications
Nominal Dimensions Body Length
22.0 mm | 0.866 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.5 mm | 0.059 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
17.5 mm | 0.689 in
Nominal Dimensions Minimum Grip Range
15.5 mm | 0.610 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
