Ornit Open End Peel Blind Rivet - 4.8mm x 35.0mm
Ornit Open End Peel Blind Rivet - 4.8mm x 35.0mm
SKU:OPE-fda8a1
Premium Ornit 4.8mm x 35.0mm Open End Peel Blind Rivet for strong and reliable fastening in industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Ornit Open End Peel Blind Rivet - 4.8mm x 35.0mm
$89.99
Quantity: 1
Claim Your Seller Account
Ornit Open End Peel Blind Rivet - 4.8mm x 35.0mm
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

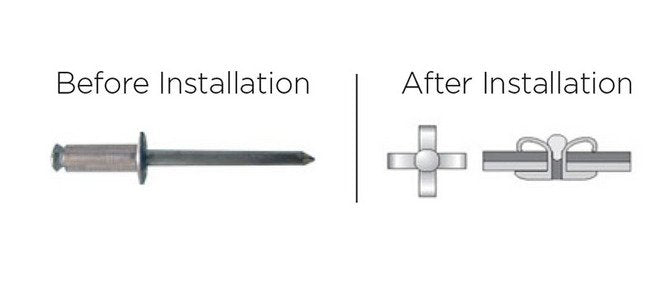

The Ornit Open End Peel Blind Rivet features a 4.8mm diameter and 35.0mm body length. Constructed from Aluminum Alloy with a Peel head style, this rivet offers exceptional grip strength with a maximum range of 28.0mm. The low carbon steel mandrel ensures reliable performance under high shear and tensile forces. Ideal for industrial applications requiring secure and permanent fastening.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
35.0 mm | 1.378 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
5.2 mm | 0.205 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
28.0 mm | 1.102 in
Nominal Dimensions Minimum Grip Range
21.0 mm | 0.827 in
Nominal Forces Nominal Shear Force
200 kgf | 440 lbf
Nominal Forces Nominal Tensile Force
200 kgf | 440 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (3.5-5.0 mg) to AA 5056 /5154
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Peel
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
