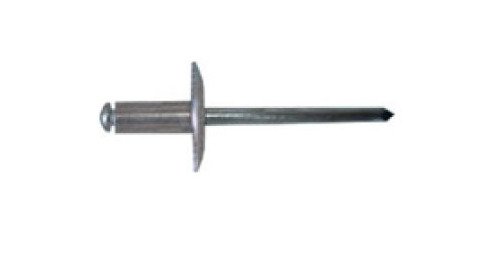

Ornit Open End X-Large Blind Rivet, 4.8mm x 12.0mm
Ornit Open End X-Large Blind Rivet, 4.8mm x 12.0mm
SKU:OPE-2f8a94
Strong and reliable Ornit blind rivet, 4.8mm x 12.0mm, ideal for heavy-duty applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit Open End X-Large Blind Rivet, 4.8mm x 12.0mm
$45.99
Quantity: 1
Claim Your Seller Account
Ornit Open End X-Large Blind Rivet, 4.8mm x 12.0mm
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit Open End X-Large Blind Rivet, with a 4.8mm diameter and 12.0mm body length, is designed for heavy-duty applications where strength and reliability are paramount. Crafted from Aluminum Alloy to AA 5052 and featuring a Zinc Plated Chromium (Cr) VI Free mandrel, this rivet ensures corrosion resistance and robust performance. With a shear force of 150kgf and a tensile force of 220kgf, it meets stringent industrial standards for secure fastening.
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.8 mm | 0.622 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
7.0 mm | 0.276 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
