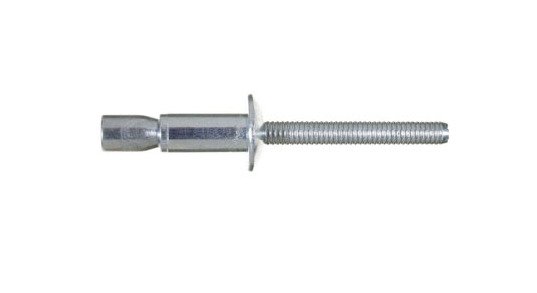

Ornit OR-Bolt 14.0mm Steel Protruding Head Rivet
Ornit OR-Bolt 14.0mm Steel Protruding Head Rivet
SKU:ORB-72080a
Ornit OR-Bolt Steel Protruding Head Rivet: Durable 14.0mm rivet for secure fastening. Compliant with federal standards.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Ornit OR-Bolt 14.0mm Steel Protruding Head Rivet
$35.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bolt 14.0mm Steel Protruding Head Rivet
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit OR-Bolt Steel Protruding Head Rivet is a reliable fastening solution constructed with low carbon steel and zinc-plated chromium VI free finish for enhanced durability. With a 14.0mm body length and nominal shear force of 1250 kgf, this rivet ensures secure connections in various applications. Compliant with federal procurement standards and offering a grip range from 2.0mm to 9.5mm, it meets stringent industry requirements for quality and reliability.
Product Specifications
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.6 mm | 0.102 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Medium Carbon Steel
