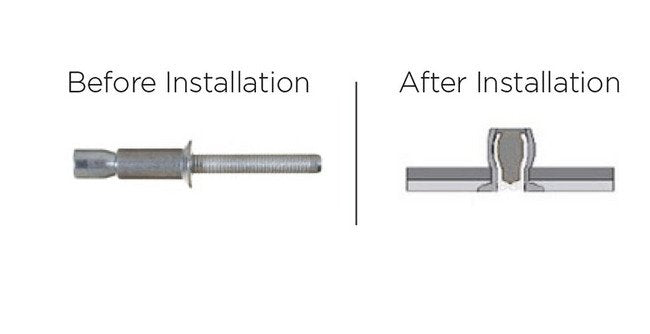

Ornit OR-Bolt 16.5mm Countersunk Head Steel Rivet
Ornit OR-Bolt 16.5mm Countersunk Head Steel Rivet
SKU:ORB-ebb57e
Premium Ornit OR-Bolt 16.5mm Steel Rivet for reliable and secure fastening, ideal for government and institutional use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit OR-Bolt 16.5mm Countersunk Head Steel Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bolt 16.5mm Countersunk Head Steel Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit OR-Bolt Steel 16.5mm Countersunk Head Rivet is a top-of-the-line fastening solution crafted from low carbon steel with a zinc-plated chromium (Cr) VI free finish, ensuring durability and corrosion resistance. With a nominal shear force of 653 kgf and a nominal tensile force of 520 kgf, this rivet guarantees exceptional strength and reliability in various applications. Its 100-degree countersunk head design and precise dimensions make it ideal for secure fastening, meeting the stringent requirements of government and institutional procurements.
Product Specifications
Nominal Dimensions Body Length
16.5 mm | 0.650 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
8.6 mm | 0.338 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
12.20 mm | 0.480 in
Nominal Dimensions Minimum Grip Range
3.2 mm | 0.126 in
Nominal Forces Nominal Shear Force
653 kgf | 1440 lbf
Nominal Forces Nominal Tensile Force
520 kgf | 1146 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Medium Carbon Steel
