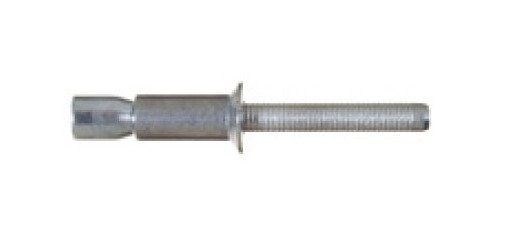

Ornit OR-Bolt Aluminum 100 Degree Countersunk Rivets
Ornit OR-Bolt Aluminum 100 Degree Countersunk Rivets
SKU:ORB-02ebb5
Durable Ornit aluminum rivets with precise dimensions for secure fastening.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Ornit OR-Bolt Aluminum 100 Degree Countersunk Rivets
$69.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bolt Aluminum 100 Degree Countersunk Rivets
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit OR-Bolt Aluminum 100 Degree Countersunk Head Rivets are precision-engineered for durability and reliability. Featuring an aluminum alloy body that meets rigorous industry standards, these rivets offer exceptional shear and tensile forces, making them ideal for applications requiring secure fastening. With a natural finish and precise dimensions, these rivets ensure a professional and secure fit. Trust Ornit for quality and performance in every riveting task.
Product Specifications
Nominal Dimensions Body Length
16.6 mm | 0.654 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
12.1 mm | 0.476 in
Nominal Dimensions Minimum Grip Range
3.2 mm | 0.126 in
Nominal Forces Nominal Shear Force
610 kgf | 1345 lbf
Nominal Forces Nominal Tensile Force
430 kgf | 948 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
