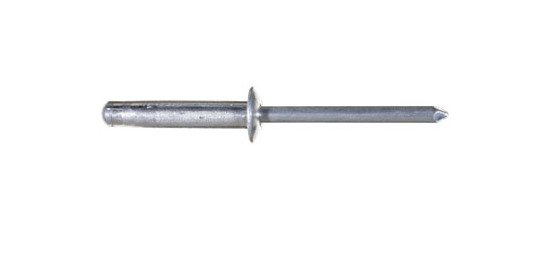

Ornit OR-Bulb 18.8mm Aluminum Dome Head Rivet
Ornit OR-Bulb 18.8mm Aluminum Dome Head Rivet
SKU:ORB-d2585d
High-quality 18.8mm Aluminum Dome Head Rivet for secure door & interior assembly. Meets gov't procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit OR-Bulb 18.8mm Aluminum Dome Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb 18.8mm Aluminum Dome Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

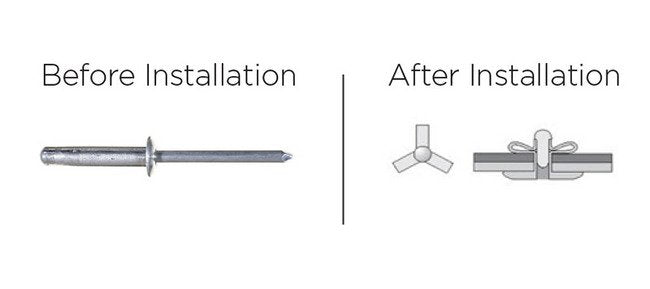

The Ornit OR-Bulb 18.8mm Aluminum Dome Head Rivet is a secure fastener essential for door components and interior assembly needs. Constructed from high-quality Aluminum Alloy ALmg 2.5, this rivet features a split tail design creating a large blind side area, ensuring strong joints perfect for soft materials. With a nominal shear force of 61kgf and a nominal tensile force of 102kgf, it guarantees durability and reliability. Ideal for government and institutional procurement due to compliance with Federal/DoD standards, GSA requirements, and FAR regulations.
Product Specifications
Nominal Dimensions Body Length
18.8 mm | 0.743 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.2 to 4.5 mm | 0.165 to 0.177 in
Nominal Dimensions Head Diameter
8 mm | 0.315 in
Nominal Dimensions Head Thickness
1.40 mm | 0.055 in
Nominal Dimensions Mandrel Diameter
2.3 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
7.0 mm | 0.276 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
61 kgf | 134 lbf
Nominal Forces Nominal Tensile Force
102 kgf | 224 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
