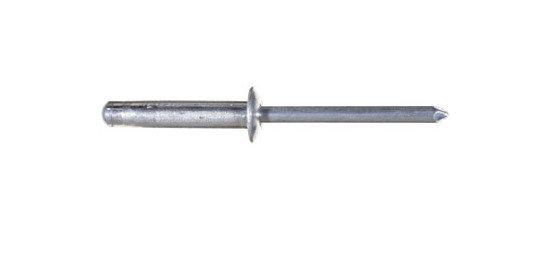

Ornit OR-Bulb 24.0mm Aluminum Dome Head Rivet
Ornit OR-Bulb 24.0mm Aluminum Dome Head Rivet
SKU:ORB-78ff5f
Securely fasten components with Ornit's aluminum dome head rivet. Prevent electrical problems and corrosion. Ideal for doors, rails, and automotive interiors.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit OR-Bulb 24.0mm Aluminum Dome Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb 24.0mm Aluminum Dome Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

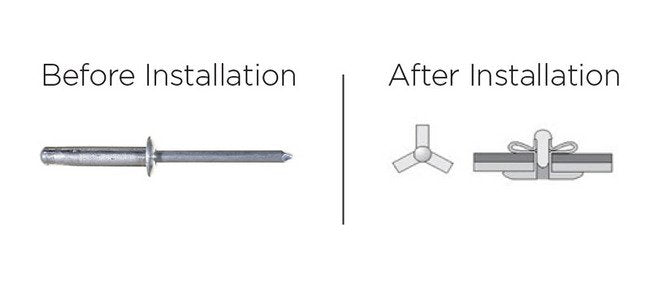

The Ornit OR-Bulb 24.0mm Aluminum Dome Head Rivet is a high-quality, aluminum alloy fastener designed for secure assembly in various applications. With a split tail for multi-grip capability and a large blind side area, this rivet offers exceptional resistance to electrical issues and corrosion. Ideal for use in doors, rails, automotive interiors, and more, the OR-Bulb ensures a highly secure joint formation, especially in soft materials. With a body length of 24.0mm, this rivet provides a grip range of 4.0mm to 12.0mm and nominal shear force of 92kgf and tensile force of 122kgf.
Product Specifications
Applications Automotive Application
InteriorThe Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
24.0 mm | 0.948 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
12.0 mm | 0.474 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
