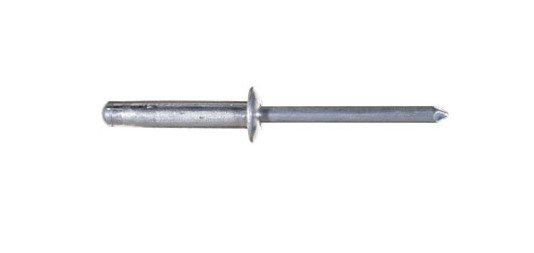

Ornit OR-Bulb 24.8mm Aluminum Dome Head Rivet
Ornit OR-Bulb 24.8mm Aluminum Dome Head Rivet
SKU:ORB-70fc7c
Secure aluminum dome head rivet for doors and cabin assembly. Prevents corrosion with split tail design. Ornit quality.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit OR-Bulb 24.8mm Aluminum Dome Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb 24.8mm Aluminum Dome Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

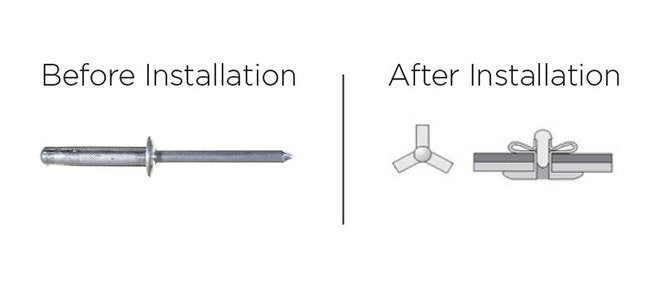

The Ornit OR-Bulb 24.8mm Aluminum Dome Head Rivet offers a secure assembly solution for various door components. Constructed from Aluminum Alloy ALmg 2.5 with a natural finish, this rivet features a split tail and a large blind side area, preventing electrical problems and corrosion. With a dome head style and a nominal shear force of 61kgf | 134 lbf, this rivet ensures a highly secure joint, especially suitable for soft materials. Trust in Ornit's quality for durable and reliable fastening solutions.
Product Specifications
Nominal Dimensions Body Length
24.8 mm | 0.979 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.2 to 4.5 mm | 0.165 to 0.177 in
Nominal Dimensions Head Diameter
8 mm | 0.315 in
Nominal Dimensions Head Thickness
1.40 mm | 0.055 in
Nominal Dimensions Mandrel Diameter
2.3 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
12.0 mm | 0.472 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
61 kgf | 134 lbf
Nominal Forces Nominal Tensile Force
102 kgf | 224 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
