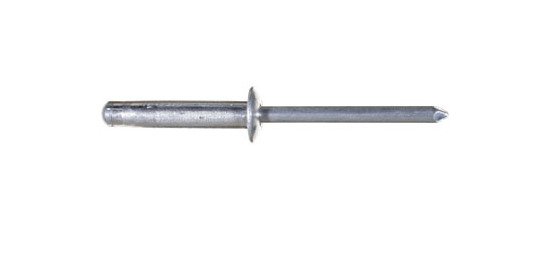

Ornit OR-Bulb 4.0mm Aluminum Dome Head Rivet
Ornit OR-Bulb 4.0mm Aluminum Dome Head Rivet
SKU:ORB-4d4fa5
Securely assemble door components with the Ornit OR-Bulb 4.0mm Aluminum Dome Head Rivet. Corrosion-resistant and highly secure for various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornit OR-Bulb 4.0mm Aluminum Dome Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb 4.0mm Aluminum Dome Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

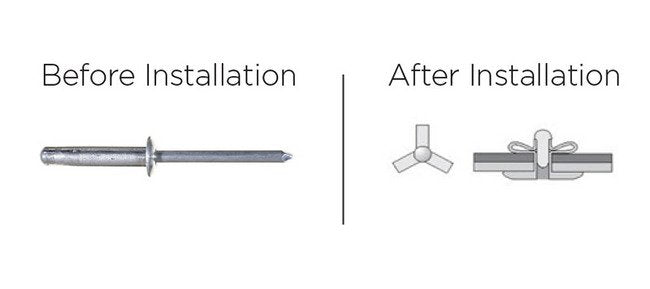

The Ornit OR-Bulb 4.0mm Aluminum Dome Head Rivet is a high-quality fastener designed for secure assembly in various door components. Crafted from Aluminum Alloy ALmg 2.5, this rivet offers corrosion resistance and prevents electrical issues. With a Dome Head style and a large blind side area, it ensures a highly secure joint assembly. The 13.6mm body length provides versatile application, making it ideal for soft materials. This rivet meets stringent industry standards, delivering reliability and durability in every use.
Product Specifications
Nominal Dimensions Body Length
13.6 mm | 0.537 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.2 to 4.5 mm | 0.165 to 0.177 in
Nominal Dimensions Head Diameter
8 mm | 0.315 in
Nominal Dimensions Head Thickness
1.40 mm | 0.055 in
Nominal Dimensions Mandrel Diameter
2.3 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
3.0 mm | 0.118 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
61 kgf | 134 lbf
Nominal Forces Nominal Tensile Force
102 kgf | 224 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
