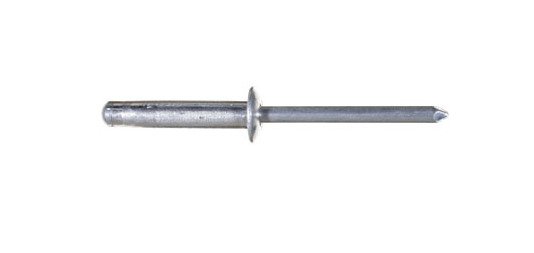

Ornit OR-Bulb Aluminum Dome Head Rivet
Ornit OR-Bulb Aluminum Dome Head Rivet
SKU:ORB-fa8416
Premium Ornit OR-Bulb 20.5mm Aluminum Dome Head Rivet for secure and corrosion-resistant fastening in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornit OR-Bulb Aluminum Dome Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb Aluminum Dome Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

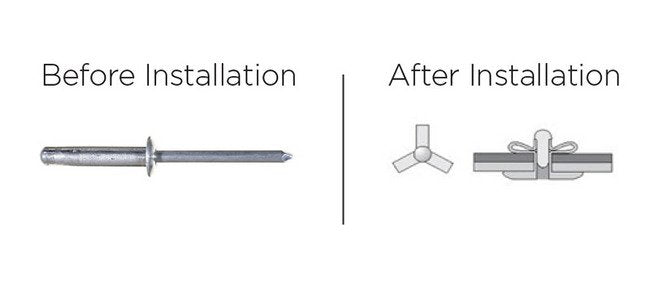

The Ornit OR-Bulb 20.5mm Aluminum Dome Head Rivet is a high-quality fastener designed for secure assembly in various applications. Made from Aluminum Alloy ALmg 2.5 with a natural finish, this rivet offers exceptional strength and corrosion resistance. With a large blind side area and split tail for multi-grip capability, it ensures a reliable connection, preventing electrical issues. Ideal for soft materials, it provides a secure joint, meeting the stringent requirements of institutional and government procurement standards.
Product Specifications
Applications Automotive Application
InteriorThe Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
20.5 mm | 0.809 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.356 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
